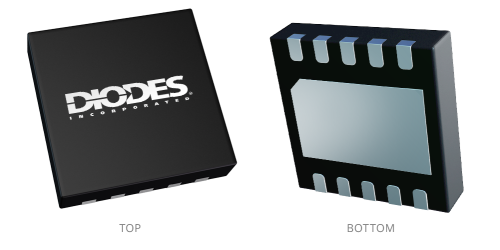

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.


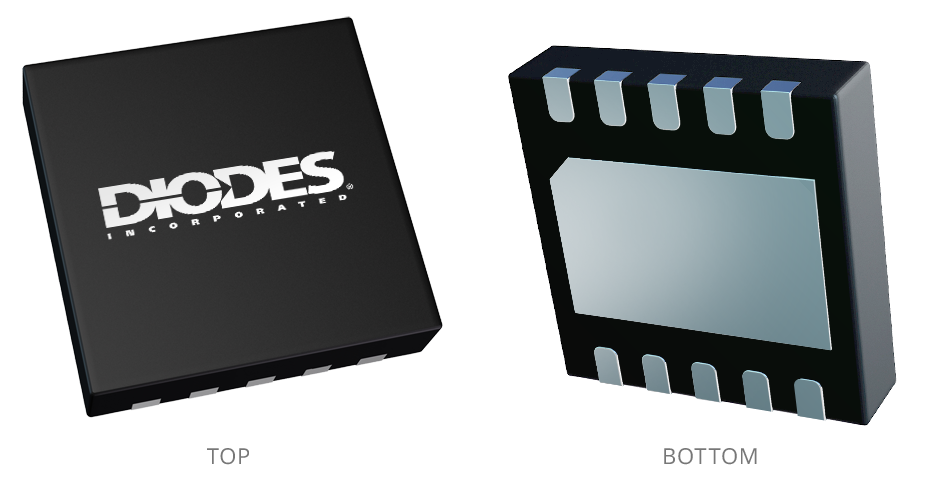

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.


Back to Linear and Low Dropout (LDO) Regulators

AP7165

600MA Low Dropout Regulator with POK

Datasheet

Contact Sales

Description

The AP7165 is a 600mA, adjustable output voltage, ultra-low dropout linear regulator. The device includes pass element, error amplifier, band-gap reference, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. A Power-OK (POK) output is available for power sequence control. The characteristics of the low dropout voltage and low quiescent current make it suitable for low to medium power applications, for example, laptop computers, audio and video applications, and battery powered devices. The typical quiescent current is approximately 125μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7165 are available in DFN3030-10 and SO-8EP packages.

Feature(s)

Wide input voltage range: 2.2V – 5.5V

300mV very low dropout at 500mA load

Very low quiescent current (IQ): 125μA typical

Adjustable output voltage range: 0.8V to 5.0V

Very fast transient response

High PSRR

Accurate voltage regulation

Current limiting and short circuit protection

Thermal shutdown protection

Stable with any type output capacitor ≥ 4.7μF

Ambient temperature range -40°C to 85°C

DFN3030-10 and SO-8EP: - Available in “Green” Molding Compound (No Br, Sb)

Lead Free Finish/RoHS Compliant

Application(s)

Servers and laptops

Smart phone and PDA

MP3/MP4

Bluetooth headset

Low and medium power applications

FPGA and DSP core or I/O power

Product Specifications

Product Parameters

Iq (max) (µA)	170
Iq (typ) (µA)	125
AEC Qualified	No
Compliance (Only Automotive supports PPAP)	Standard
Type	LDO
Output options	Adjustable
Iout (A)	0.6
Vin (Max) (V)	5.5
Vin (Min) (V)	2.2
Vout (min)	0.8
Vout (max)	3.3
Adjustable VFB (V)	0.8
Accuracy 25C	2.5
VDROPOUT (Max) (V) at Max Current and Max Ouput Voltage	0.4
PSRR (dB) 1kHz	60
Operating Temperature (Ambient) (°C)	-40 to 85
Enable Active	Yes (High)
Channels	1
Output Discharge	No
Power Good	Open Drain
Reverse Protection	No
VCTL Function	No
