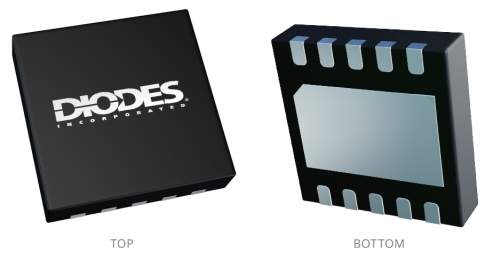

U DFN3030 10

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

AP8800 (NRND)

NRND = Not Recommended for New Design

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AP8800 is a step-down DC/DC converter designed to drive LEDs with a constant current. The device can drive up to seven LEDs, depending on the forward voltage of the LEDs, in series from a voltage source of 8V to 28V. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminates the need for ballast resistors. The AP8800 switches at frequency up to 0.6MHz. This allows the use of small size external components, hence minimizing the PCB area needed. Maximum output current of AP8800 is set via an external resistor connected between the VIN and SET input pins. Dimming is achieved by applying either a DC voltage or a PWM signal at the CTRL input pin. An input voltage of 0.2V or lower at CTRL shuts down the output at SW and puts the device into a low-current standby state.

Feature(s)

  • LED driving current up to 350mA
  • Compatible with 12V & 24V standard systems
  • High efficiency up to 92%
  • High switching frequency up to 0.6MHz
  • PWM/DC input for dimming control
  • Built-in soft-start function
  • Built-in output open-circuit protection
  • SO-8, MSOP-8L and DFN3030-10 are available in “Green” Molding Compound (No Br, Sb)
  • Lead Free Finish/RoHS Compliant

Application(s)

  • Commercial & Industrial lighting
  • Small LCD panel backlight
  • Architecture Detail lighting
  • Appliances interior lighting

Product Specifications

Product Parameters

AEC-Q100 Grade No
Compliance (Only Automotive supports PPAP) No
Dimming (Analog) Yes
Dimming (PWM) Yes
Efficiency (%) 92
LED Current Accuracy (%) 7
MaximumInput Voltage (V) 28
Maximum LED Current (A) 0.35
Maximum Output Voltage (V) 28
MinimumInput Voltage (V) 8
OperatingTemperatureRange  (°C) -40 to 85
AEC Qualified No
Sense/Feedback Voltage (mV) 100
Switching Frequency Maximum (kHz) 700
Topologies (Boost) No
Topologies (Buck-Boost) No
Topologies (Buck) Yes
