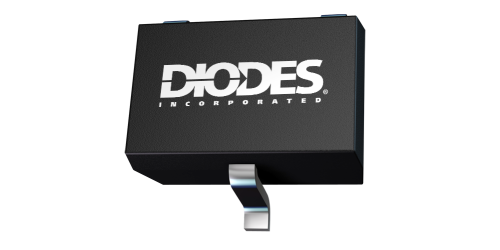

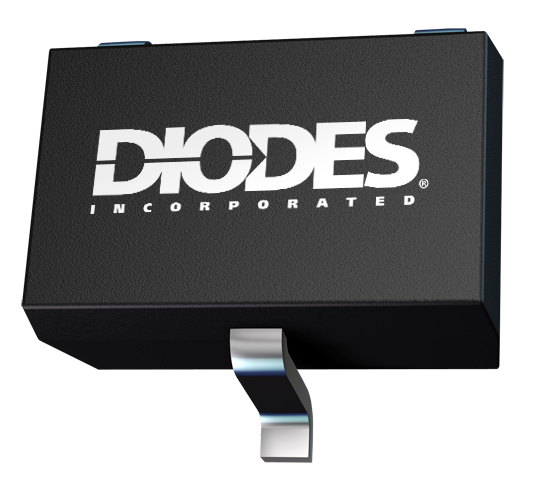

BAS21WQ

SURFACE MOUNT FAST SWITCHING DIODE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Surface mount fast switching diode.

Feature(s)

  • High Breakdown Voltage
  • Low Leakage Current

Application(s)

  • Automotive
  • Computers
  • Consumers

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive supports PPAP) Automotive
Configuration Single
Polarity Anode, Cathode
Power Rating(mW) 200 mW
ESD Diodes (Y|N) No
Peak RepetitiveReverse VoltageVRRM (V) 250 V
Reverse RecoveryTime trr (ns) 50 ns
Maximum Average Rectifier Current IO (mA) 200 mA
Maximum Peak Forward Surge Current IFSM (A) 2.5 A
Forward Voltage Drop VF @ IF (mA) 2.5, 1 mA
Maximum ReverseCurrent IR (µA) 0.1 µA
TotalCapacitance CT (pF) 5 pF
VF(V) Max @ IF=100mA 1
V(BR)R (V) Min @IR=100μA 200
Trr(ns) Max @ IF=IR=10 mA, Irr=0.1xIR, RL=100Ω 50
Maximum Reverse Current IR @ VR (V) 200 V
IR(uA) Max @ VR=80V 100nA@200V
CT(pF) Max @ VR = 0V, f = 1MHz 5

Related Content

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2545 2021-10-05 2022-01-05 Phenitec Wafer Manufacturing Site Change and Additional Wafer Source on Select Automotive Products
PCN-2462 2020-05-08 2021-04-11 Phenitec Wafer Manufacturing Site Change, Additional Wafer Sources, Wafer Diameter Change, Additional Assembly and Test Site (Automotive)
PCN-2319 2018-03-09 2018-06-09 Qualification of Alternative Wafer Sources for Select Automotive Products Due to Closure of Diodes FabTech (KFAB) Facility
