SINGLE CHANNEL SMART LOAD SWITCH
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

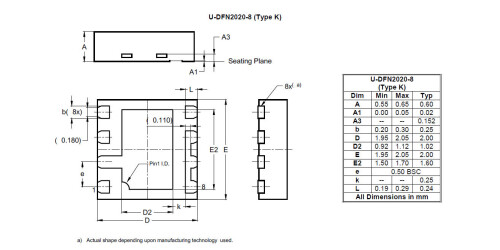

The DML1010FDK is a single channel load switch with very low on-resistance in a small package. It contains an N-channel MOSFET for up to VVBIAS-1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.
• Low RDS(ON)—Ensures On State Losses Are Minimized
• 0.8V to VVBIAS-1.5V Input Voltage Range
• 6A Continuous Current
• Low RDS(ON) Internal NFETs 8mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C
• 35μA Low Quiescent Current
• 10μs Turn On Rise Time
• 3.2V to 5.5V Bias Voltage
• Integrated Quick Output Discharge Resistor
• Moisture Sensitivity: Level 1 per J-STD-020
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Portable Electronics and Systems
• Notebook and Tablet Computers
• Telecom, Networking, Medical, and Industrial Equipment
• Set−Top Boxes, Servers, and Gateways
• SSD
| Type | Load Switch |
|---|---|
| AEC Qualified | No |
| Compliance (Only Automotive supports PPAP) | Standard |
| Maximum Continuous Output Current (A) | 6 |
| (MAX) Maximum Current Limit Fixed (A) | Not Limited |
| Adjustable Current Limit | No |
| Channels | 1 |
| Enable Logic | Active High |
| Minimum Operating Voltage (V) | 0.8 |
| Maximum Operating Voltage (V) | 4 |
| Quiescent Current Typ (µA) | 35 |
| RDS(ON) (VIN = 5V) Typ (mΩ) | 8 (Max.) |
| Reverse Current Block | No |
| Minimum Power Supply Voltage (V) | 3.2 |
| Maximum Power Supply Voltage (V) | 5.5 |
| Output Discharge | Yes |
| (TYP) Output Rise Time mS | 0.01 |
| OCP Output Latch Off | No |
| OCP/SCP | No |
| OCP Flag | No |
| Power Good | No |
| Operating Ambient Temperature Range (°C) | -40 to 85 |
| Overtemperature Protection | No |
| UL Certificate | No |
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2495 | 2021-03-31 | 2021-07-01 | Qualification of Additional Assembly & Test Sites and Additional Wafer Back Grinding and Back Metal Process Source for Select Discrete Products |
