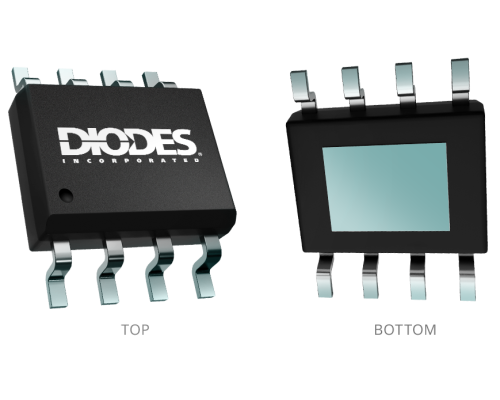

SO 8EP

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

SOT25

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

ZXLD1366Q (NRND)

NRND = Not Recommended for New Design

AUTOMOTIVE GRADE HIGH ACCURACY 1A, 60V LED DRIVER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The ZXLD1366Q is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 60V and provides an externally adjustable output current of up to 1A.

The ZXLD1366Q uses a high-side output current sensing circuit which uses an external resistor to set the nominal average output current. The output current can be adjusted above, or below the set value, by applying an external control signal to the 'ADJ' pin.

Enhanced output current dimming resolution can be achieved by applying a PWM signal to the ‘ADJ’ pin.

Soft-start can be forced using an external capacitor from the ADJ pin to ground. Applying a voltage of 0.2V or lower to the ADJ pin turns the output off and switches the device into a low current standby state.

The ZXLD1366Q has been qualified to AEC-Q100 Grade 1 and is Automotive Grade supporting PPAPs.

Feature(s)

  • Typically better than 0.8% output current accuracy

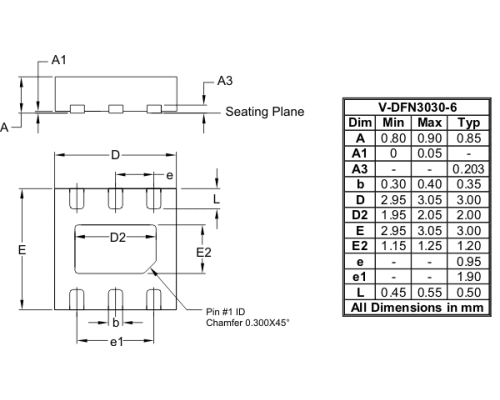

  • Available in thermally enhanced DFN and SO-8 packages
  • Simple and with low part count
  • Single pin on/off and brightness control using DC voltage or PWM
  • PWM resolution up to 1000:1
  • High efficiency (up to 97%)
  • Wide input voltage range: 6V to 60V
  • Inherent open-circuit LED protection
  • “Green” Mold compound (No Br, Sb) and lead Free Finish/RoHS Compliant

Application(s)

  • Automotive Lighting
  • Rear Cluster
  • LED Internal Lamps

Product Specifications

Product Parameters

AEC Qualified Yes
AEC-Q100 Grade 1
Compliance (Only Automotive supports PPAP) Automotive
Compliance (Only Automotive supports PPAP) Automotive
Dimming Yes
Dimming (Analog) Yes
Dimming (PWM) Yes
Efficiency (%) 95
Efficiency (%) 95
LED Current Accuracy (%) 2.5
LED Current Accuracy (%) 2.5
MaximumInput Voltage (V) 60
Maximum Input Voltage (V) 60
Maximum LED Current (A) 1
Maximum LED Current (A) 1
Maximum Output Voltage (V) 60
Maximum Output Voltage (V) 60
MinimumInput Voltage (V) 6
Minimum Input Voltage (V) 6
OperatingTemperatureRange  (°C) -40 to 125
Operating Temperature Range (°C) -40 to 125
Compliance (Only Automotive supports PPAP) Yes
Preset LED Current (A) N/A
AEC Qualified Yes
Sense/Feedback Voltage (mV) 200
Sense/Feedback Voltage (mV) 200
Switching Frequency Maximum (kHz) 500
Switching Frequency Maximum (kHz) 500
Topologies (Boost) No
Topologies (Buck-Boost) No
Topologies (Buck) Yes
Topologies (Charge Pump) No
Topology Buck
