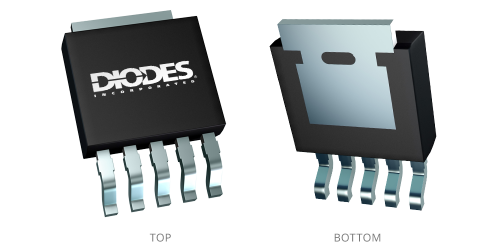

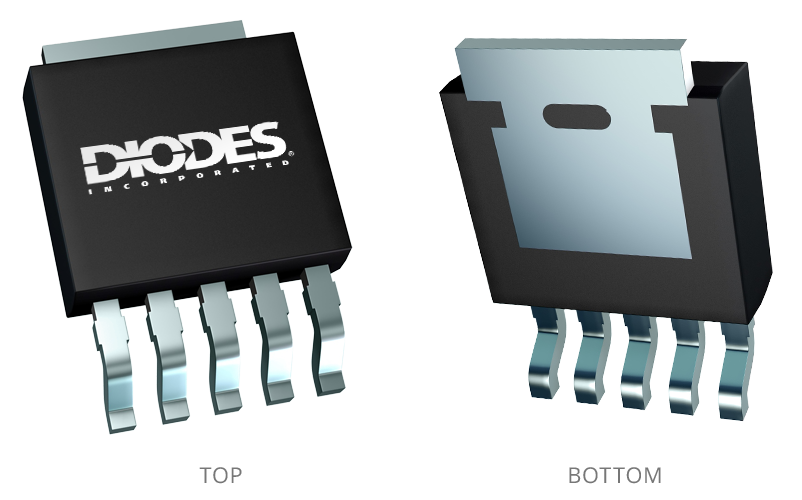

TO 252 5L

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

AZ39151 (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AZ1086 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 1.5A of load current. The series features on-chip thermal shutdown. It also includes a bandgap reference and a current limiting circuit. The AZ1086 is available in 1.5V, 1.8V, 2.5V, 3.0V, 3.3V, and 5.0V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version, which can set the output voltage with only two external resistors.

Feature(s)

  • Low Dropout Voltage: Typical 1.3V at 1.5A
  • Current Limiting and Thermal Protection
  • Output Current: 1.5A
  • Current Limit: 2.3A
  • Operating Junction Temperature: 0 to +125°C
  • Line Regulation: 0.015% (Typical)
  • Load Regulation: 0.1% (Typical)

Application(s)

· Set-top Box · Hi-end DVD Player/Recorder · LCD TV/PDP · LDO Linear Regulator for PC Add-in Cards · High Efficiency Linear Power Supplies · SMPS Post Regulator

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
Channels 1
Dropout Voltage Max (V) 0.375
Enable Active H
Features High current
IOUT 1.5
IQ (mA) N/A
OperatingInputVoltage Max (V) 13.2
OperatingInputVoltage Min (V) 2.5
Operating Temperature (ºC) N/A
Operating Temperature (Ambient) (°C) -40 to 85
Operating Temperature N/A
Output Current (mA) 1.5
Output Voltage (V) 5, (1.25), 3.3, ADJ
PSRR 65
AEC Qualified No
Quiescent Current Typ (mA) N/A
VDROPOUT (Max) 0.375
VIN (Max) 13.2
VIN (Min) 2.5
VOUT 5, (1.25), 3.3, ADJ
