AZV5001

Low Power Headset Detection IC in Miniaturized Package

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AZV5001 is a low power and cost effective headset detection IC with a comparator with internal hysteresis, OR gate, and N−channel MOSFET integrated designed to detect the assertion of a headset with a microphone. Pull−up resistors for the detection pins are internalized, a built in resistor divider provides the reference voltage for detecting the left audio channel. The logic low output of the OR gate indicates the headset has been connected properly.

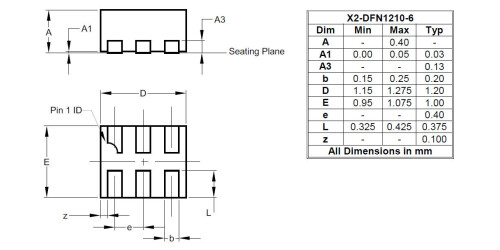

The AZV5001 is available in miniaturized package, DFN1210H4-6 which helps reduce the space needed on PCB boards.

Feature(s)

  • Low Supply Current: 7.5uA(typical)@ VCC = 1.8V
  • Supply Voltage Range: 1.6~2.75V
  • Comparator, OR Gate, N-Channel MOSFET Integrated
  • Open Drain Output for MIC Pin
  • DFN1210H4-6: Available in “Green” Molding Compound (No Br. Sb.)
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Mobile Phones
  • Pad
  • Battery Powered Audio Devices

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified No
Minimum Supply Voltage (V) 1.6 V
Maximum Supply Voltage (V) 5.5 V
Supply Current @ 5V (per Op Amp) (mA) 0.0075 mA
Input Offset Voltage (Typ/Max) - mV
Input Bias Current typ (nA) - nA
Minimum Input Common Mode Voltage (V) - V
Maximum Input Common Mode Voltage (V) - V
Output Current Sink (mA) - mA
Number of Channels 1
Operating Ambient Temperature Range (°C) -40 to 85 °C
Output Type Open Drain
