DMN1032UCP4

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This 2nd generation Lateral MOSFET (LD-MOS) is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power transfer. It uses Chip-Scale Package (CSP) to increase power density by combining low thermal impedance with minimal RDS(ON) per footprint area.

Feature(s)

  • LD-MOS Technology with the Lowest Figure of Merit:
    • RDS(ON) = 18mΩ to Minimize On-State Losses
    • Qg = 3.2nC for Ultra-Fast Switching
  • VGS(th) = 8V Typ. for a Low Turn-On Potential

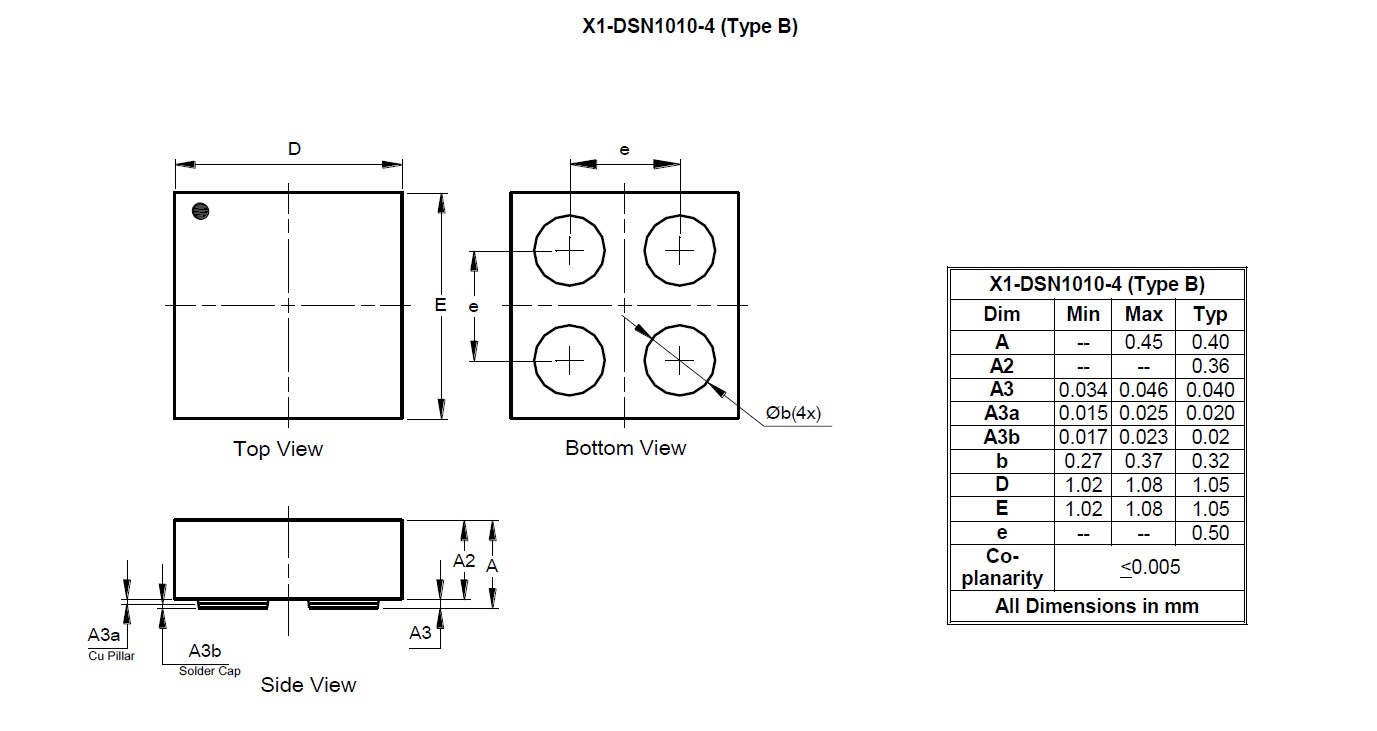

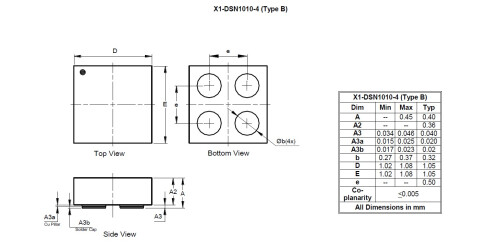

  • CSP with Footprint 1.0mm × 1.0mm
  • Height = 0.45mm for Low Profile
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Application(s)

  • DC-DC converters
  • Battery management
  • Load switches

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N
ESD Diodes (Y|N) No
|VDS| (V) 12 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 5
PD @TA = +25°C (W) 1.01
RDS(ON)Max@ VGS(4.5V)(mΩ) 28 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 32 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 42 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.2 V
QG Typ @ |VGS| = 4.5V (nC) 3.2 nC
CISS Typ (pF) 325 pF
CISS Condition @|VDS| (V) 6 V
