DMN6017SFV

60V N-CHANNEL ENHANCEMENT MODE MOSFET

Datasheet

Contact Sales

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

Low RDS(ON) – ensures on state losses are minimized

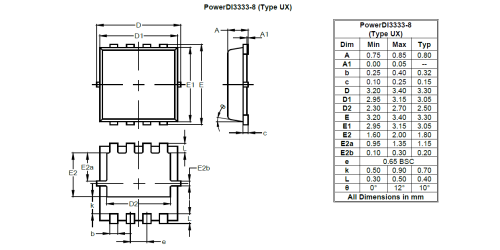

Small form factor thermally efficient package enables higher density end products
Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Application(s)

Backlighting
Power Management Functions
DC/DC Converters

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	N
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	60 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_C = +25°C (A)	35
P_D @T_A = +25°C (W)	2
R_DS(ON)Max@ V_GS(10V)(mΩ)	18 mΩ
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	20 mΩ
\|V_GS(TH)\| Max (V)	3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	26 nC
Q_G Typ @ \|V_GS\| = 10V (nC)	55 nC
C_ISS Typ (pF)	2711 pF
C_ISS Condition @\|V_DS\| (V)	15 V

Technical Documents

SPICE Model

DMN6017SFV.spice.txt

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2425	2019-10-04	2020-01-04	Qualification of Additional Wafer Solderable Front Metal Plating, Back Grinding and Back Metal Process Source, and Additional Wafer Source for Select Products.
