DMN6070LCA6

60V N-Channel Enhancement Mode MOSFET

Datasheet

Contact Sales

Description

This new generation MOSFET is designed to minimize the footprint in handheld and mobile application. It can be used to replace many small-signals MOSFET with really small footprint.

Feature(s)

Low On-Resistance

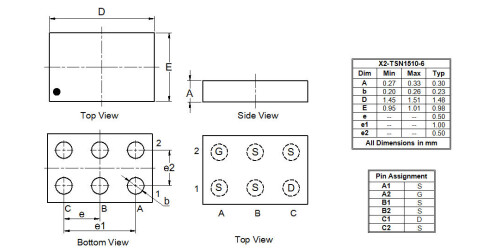

Small 1.48mm x 0.98mm Package
Ultra-Thin 0.3mm Package
Low Input Capacitance
Fast Switching Speed
ESD Protected
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Load switches
DC-DC primary switches

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	N
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	20 V
\|V_GS\| (±V)	60 ±V
\|I_DS\| @T_A = +25°C (A)	3.68
P_D @T_A = +25°C (W)	1.8
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	85 mΩ
R_DS(ON)Max@ V_GS(2.5V)(mΩ)	95 mΩ
\|V_GS(TH)\| Min (V)	0.4 V
\|V_GS(TH)\| Max (V)	1 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	18.7 nC
C_ISS Typ (pF)	1613 pF
C_ISS Condition @\|V_DS\| (V)	30 V

Technical Documents

SPICE Model

DMN6070LCA6.spice.txt

Recommended Soldering Techniques

TN1.pdf
