DMP1008UCA9

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This 3rd generation Lateral MOSFET (LD-MOS) is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power transfer. It uses Chip-Scale Package (CSP) to increase power density by combining low thermal impedance with minimal RDS(ON) per footprint area.

Feature(s)

  • LD-MOS Technology with the Lowest Figure of Merit:
    • RDS(ON) = 5.7mΩ to Minimize On-State Losses
    • Qg = 9.5nC for Ultra-Fast Switching
  • VGS(TH) = -0.7V Typ. for a Low Turn-On Potential

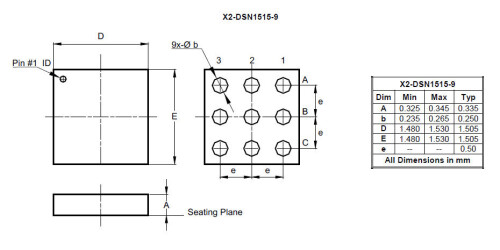

  • CSP with Footprint 1.5mm x 1.5mm
  • Height = 0.34mm for Low Profile
  • ESD Protection of Gate

Application(s)

  • DC-DC Converters
  • Battery Management
  • Load Switch

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 8 V
|VGS| (±V) 6 ±V
|IDS| @TA = +25°C (A) 16
PD @TA = +25°C (W) 2.2
RDS(ON)Max@ VGS(4.5V)(mΩ) 5.7 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 9.1 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.1 V
QG Typ @ |VGS| = 4.5V (nC) 9.5 nC
CISS Typ (pF) 952 pF
CISS Condition @|VDS| (V) 4 V
