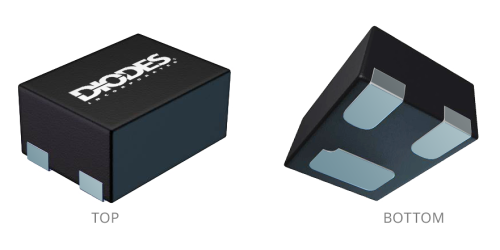

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
U-DFN2020-6-Type-F.pngNRND = Not Recommended for New Design
Dual P-CHANNEL ENHANCEMENT MODE MOSFET
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
| Compliance (Only Automotive supports PPAP) | No |
|---|---|
| CISS Condition @|VDS| (V) | N/A |
| CISS Typ (pF) | 55 |
| ESD Diodes (Y|N) | Yes |
| |IDS| @TA = +25°C (A) | 0.33 |
| PD @TA = +25°C (W) | 0.36 |
| Polarity | P |
| QG Typ @ |VGS| = 10V (nC) | N/A |
| QG Typ @ |VGS| = 4.5V (nC) | 0.8 |
| AEC Qualified | No |
| RDS(ON)Max@ VGS(1.8V)(mΩ) | 1600 |
| RDS(ON)Max@ VGS(10V)(mΩ) | N/A |
| RDS(ON)Max@ VGS(2.5V)(mΩ) | 1200 |
| RDS(ON)Max@ VGS(4.5V)(mΩ) | 1000 |
| |VDS| (V) | 20 |
| |VGS| (±V) | 8 |
| |VGS(TH)| Max (V) | 1 |
| |VGS(TH)| Min (V) | N/A |
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2389 | 2019-02-05 | 2019-08-05 | Device End of Life |
