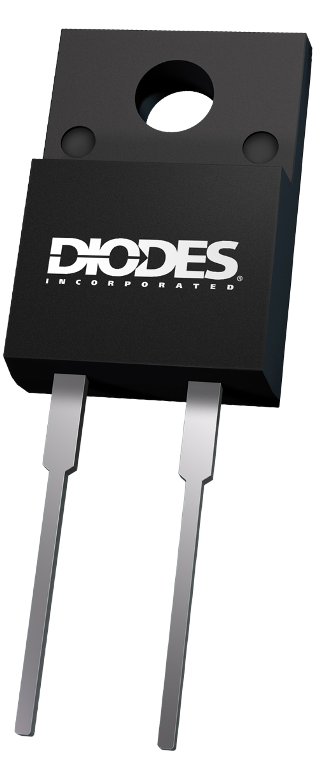

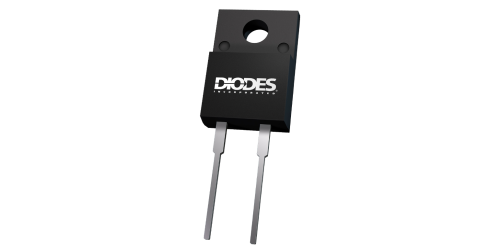

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.


Back to Fast/Ultra-Fast Rectifiers

DTH8S06FPQ

8A HYPER-FAST EPITAXIAL RECTIFIER

Datasheet

Contact Sales

Description

Suitable for rectification and freewheeling for SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment and telecommunication applications.

Feature(s)

Soft, Hyper-Fast Switching Capability
Glass Passivated Die Construction
Especially Suited for Continuous-Conduction Mode Power Factor Correction
High Reliability and Efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DTH8S06FPQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.

https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP)	Automotive
AEC Qualified	Yes
Product Type	HYPER-FAST EPITAXIAL RECTIFIER
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	8 A
Maximum Peak Forward Surge Current I_{FSM (A)}	70 A
Peak RepetitiveReverse VoltageV_RRM(V)	600 V
Forward VoltageDrop V_F(V)	3.4 V
@ I_F(A)	8 A
Maximum ReverseCurrent I_R(µA)	15 µA
@ V_R(V)	600 V
Reverse RecoveryTime trr (ns)	21 ns
