LSC08065Q8 (NRND)

NRND = Not Recommended for New Design

SiC Diode

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

@ IF (A) 8
@ VR (V) 650
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
Forward VoltageDrop VF(V) 1.7
Maximum Average Rectified Current IO (A) 8
Maximum Peak Forward Surge Current IFSM (A) 38
Maximum Reverse Current IR (μA) 230
Peak Repetitive Reverse Voltage VRRM (V) 650
Product Type SiC Diodes
AEC Qualified Yes
Reverse Recovery Time trr (ns) 19

Related Content

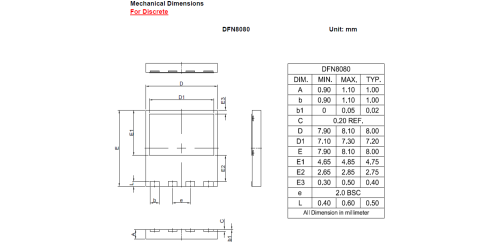

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2579 2022-08-29 2023-02-28 Device End of Life (EOL)
