LSF0106

6-Bit Bi-Directional Level Shifter with Automatic Direction Sensing for Push-Pull and Open-Drain Applications

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The LSF0106/0108 is 6/8-CH bi-directional multi-voltage level translator for open-drain and push-pull applications. This device is a universal level translator with A port operating from 0.65V to 4.5V (Vref_A) and B port 1.5V to 5.5V (Vref_B). This range allows for bidirectional voltage translations between 0.65V and 5.0V. Meanwhile, Vref_B is recommended to be at 1V higher than Vref_A for best signal integrity.

The EN pin is used to activate the device. When EN is HIGH, the translator switch is on. Otherwise, EN is LOW, the translator switch is off, and a high-impedance state exists between ports. The EN input must be connected to Vref_B and both pins pulled to HIGH through a pullup resistor (typically 200kΩ). EN must be LOW to ensure the high-impedance state during power-up or power-down.

Be aware that external Rpu (pullup resistor) is required on each signal in both A and B ports for push-pull application because a pull-high state can avoid misoperation during power-up or power-down. As same as open-drain application, the smaller Rpu results in the larger driving current. For bi-directional signal flows, there is no need for a direction pin to minimize system effort. This device supports 5V tolerant I/O pins in a variety of applications which require different voltage translation levels.

Feature(s)

  • Bi-directional level shifter for both push-pull and open-drain
  • Maximum data rate is dominated by the system capacitance and pullup resistors
    • ≤ 100MHz; CL = 15pF, 30pF, Rpu ≤ 300Ω
    • ≤ 50MHz; CL = 50pF, Rpu ≤ 300Ω
  • Bi-directional voltage level translation between:
    • 65V and 1.5V, 1.8V, 2.5V, 3.3V and 5.0V
    • 2V and 1.8V, 2.5V, 3.3V and 5.0V
    • 8V and 2.5V, 3.3V and 5.0V
    • 5V and 3.3V and 5.0V
    • 3V and 5.0V
  • ESD protection exceeds JESD 22
    • 3500V HBM (A114)
    • 1500V CDM (C101)
  • Latchup exceeds 100mA per JESD 17
  • 5V tolerant I/O pins to support TTL
  • Specified from -40°C to +125°C
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • GPIO, MDIO, SDIO, SVID, UART
  • PMBus, SMBus, I2C, and other interfaces
  • Telecom infrastructures
  • Industrials
  • High-performance computing
  • Wide array of products such as:
  • PCs, networking, notebooks
  • Smart phones
  • Tablets

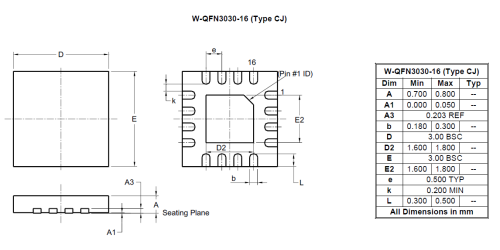

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Translation From (V) 0.65 to 4.5
Translation To (V) 1.5 to 5.5
Max Signal Rate 100MHz
Bits Needed 6
Auto Direction Sensing? No
Shift Bi-Directional
Prop Delay (ns) 0.1
Ambient or Junction Temperature (°C) -40 to 125
