MMDT3946FL3 (Obsolete)

Complementary, 40V, 0.2A, DFN1310-6

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • Complementary Pair
    • One 3904-Type NPN
    • One 3906-Type PNP
  • Ultra-Small Surface Mount Package
  • Epitaxial Planar Die Construction
  • Ideal for Low Power Amplification and Switching
  • Totally Lead-Free & Fully RoHS compliant
  • Halogen and Antimony Free. "Green" Device

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) On Request*
Category Small Signal Transistor
Compliance(Only Automotive supports PPAP) Standard
fT (MHz) 300
fT (MHz) 300
hFE (min) 70, 80
hFE(@ IC) 0.001
hFE (@ IC) (A) 0.01
hFE(@ IC2) 0.01
hFE (@ IC2) (A) 0.1
hFE(Min 2) 30
hFE (Min) 100
IC (A) 0.2
IC (A) 0.2
ICM (A) N/A
ICM (A) -
PD (W) 0.3
PD (W) 0.37
Polarity NPN + PNP
Product Type NPN + PNP
AEC Qualified Yes
RCE(SAT) N/A
RCE(sat) (mΩ) -
VCE (SAT) (@ IC/IB) (A/m A) 0.15/15
VCE (SAT) (@ IC/IB2) (A/mA) 0.05/5
VCE (SAT) (@ IC/IB2) (A/m A) (A/m A) N/A
VCE (SAT)(Max.2) 300, 400
VCE (SAT)Max (mV) 200, 250
VCE(SAT) (@ IC/IB) (A/mA) 0.01/1
VCE(sat) (@ IC/IB2) (A/mA) 0.05/5
VCE(sat) (Max.2) (mV) 300, 400
VCE(sat) Max (mV) 200, 250
VCEO, VCES (V) 40
VCEO, VCES (V) 40

Related Content

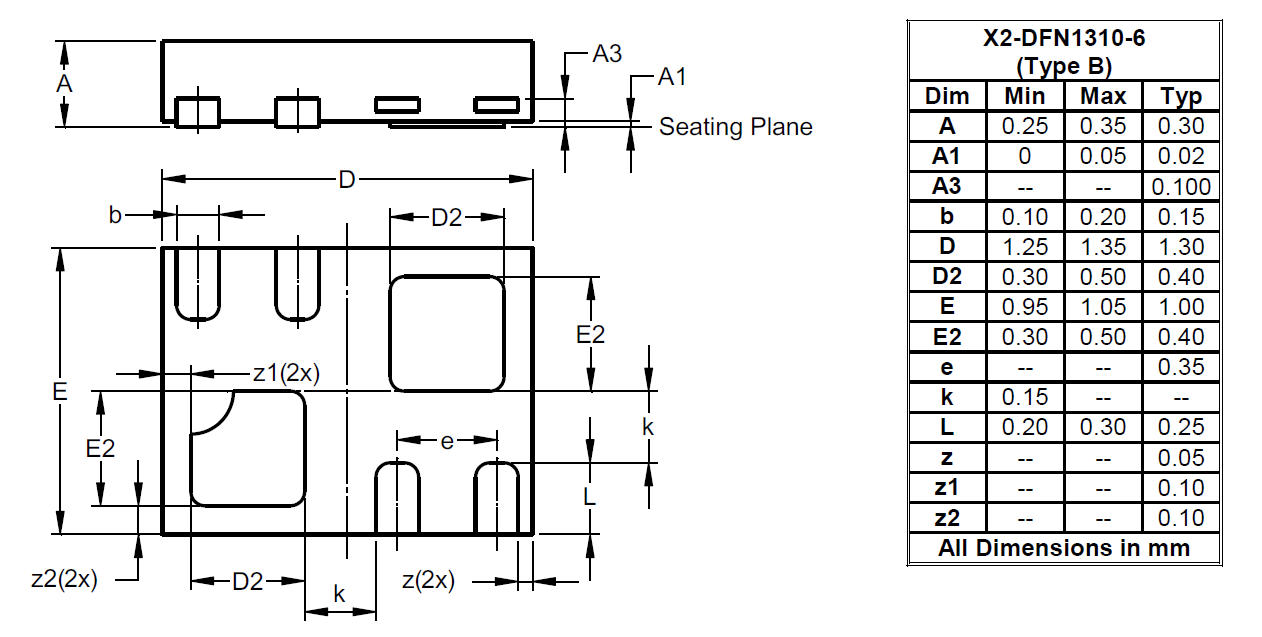

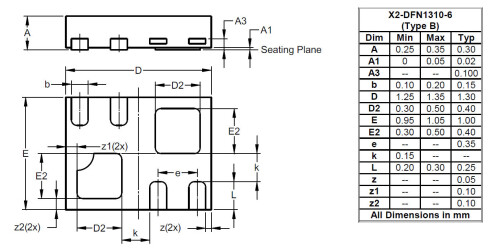

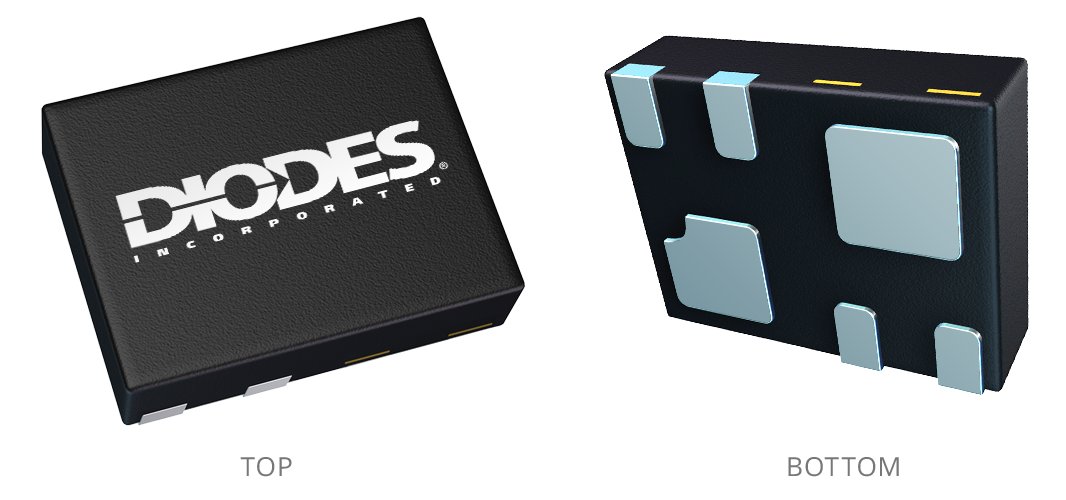

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2607 2023-02-22 2023-08-22 Device End of Life (EOL)
