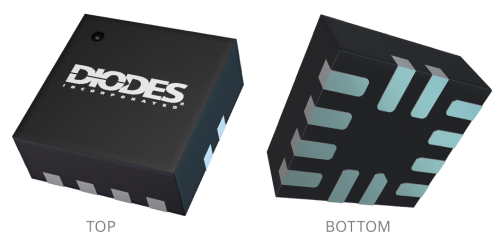

X2 QFN1616 12

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Analog Switches

PI3USB3031

2-Channel, 1:3, USB 2.0 and MHL MUX/DeMUX

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PI3USB3031 device is a 2-channel, 1:3 multiplexer that includes a high-speed Mobile High Definition Link (MHL), Mobility Display Port (MyDP) switch, and USB 2.0 High-Speed (480 Mbps) switches in the same package. These configurations allow the system designer to save board space and eliminate multiple connectors buy using a common USB or Mico-USB connector for MHL/MyDP signals and two sets of USB data. The MHL/MyDP path supports the latest MHL Rev. 3.0 specification.

The PI3USB3031 has a VCC range of 1.8V to 5.5V and supports overvoltage tolerance (OVT) feature, which allows the I/O pins to withstand overvoltage conditions (up to 5.5 V). The power-off protection feature forces all I/O pins to be in high impedance mode when power is not present, allowing full isolation of the signals lines under such condition without excessive leakage current. The select pins of PI3USB3031 are compatible with 1.8V control voltage, allowing them to be directly interfaced with the General Purpose I/O (GPIO) from a mobile processor without needing additional voltage level shifting circuitry.

The PI3USB3031 comes with a small 12-pin VQFN package with only 1.8mm x 1.8mm and QFN package with only 1.6mm x 1.6mm in size, which makes it a perfect candidate to be used in mobile applications.

Feature(s)

  • Wide VCC Range: 1.8V to 5.5V
  • Mobile High-Definition Link (MHL) or Mobility Display Port (MyDP) Switch:
    • Bandwidth (-3dB): 6.5GHz
    • RON (Typical): 5.5Ω
    • CON (Typical): 1.3pF
  • USB Switches (2 Sets):
    • Bandwidth (-3dB): 6.5GHz
    • RON (Typical): 4.5Ω
    • CON (Typical): 1pF
  • Current Consumption: 28 µA (Typical)
  • IOFF Protection Prevents Current Leakage in Powered-Down State (VCC = 0V)
  • 8V Compatible Control Inputs (SEL)
  • Overvoltage Tolerance (OVT) on All I/O Pins Up to 5V Without External Components
  • ESD Protection : 2kV(HBM), 1kV(CDM)
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • Packaging (Pb-free & Green):
    • 12-Pin, 1.8mm x 1.8mm, 0.4mm pitch (WQFN)
    • 12-Pin, 1.6mm x 1.6mm, 0.4mm pitch (X2-QFN)

Application(s)

  • PC Motherboards
  • Notebooks
  • Servers
  • Smartphones
  • Portable Instrumentation
  • Digital Cameras USB 2.0 MHL

Product Specifications

Product Parameters

Compliance(Only Automotive supports PPAP) Standard
Configuration 1 Differential Channel 1:3
Differential Channels 1
HotInsertion 1
Lanes 1
Rail-to-Rail Yes
Signal Type Differential
Single Ended Channels N/A
Type SPDT
Voltage 1.8V  to  5.5V

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Additional Technical Documents are available upon request:
Application information, Evaluation board, and Other technical documents
