SDM1A40CP3

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet

Contact Sales

Description

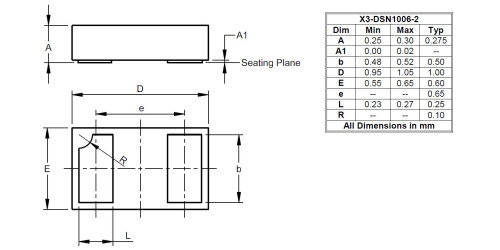

The SDM1A40CP3 is a 40-volt 1A Schottky barrier rectifier that is optimized for low forward voltage drop and low leakage current, housed in a compact die size surface mounted package that occupies only 0.6mm2 board-space. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space.

Feature(s)

Off Board Profile of 0.275mm – More Than 30% Thinner Than DFN1006
Low Forward Voltage (VF) Minimizes Conduction Losses and Improves Efficiency
Reduced High Temperature Reverse Leakage; Increased Reliability Against Thermal Runaway Failure in High Temperature Operation
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Application(s)

Blocking Diode
Boost Diode
Switching Diode
Reverse Protection Diode

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive supports PPAP)	Standard
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	1 A
@ TerminalTemperature TT (ºC)	N/A ºC
Peak RepetitiveReverse VoltageV_RRM(V)	40 V
Peak ForwardSurge CurrentI_FSM(A)	14 A
Forward VoltageDrop V_F(V)	0.56 V
@ I_F(A)	1 A
Maximum ReverseCurrent I_R(µA)	75 µA
@ V_R(V)	40 V
TotalCapacitance C_T(pF)	35 pF

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2560	2021-12-16	2021-12-16	Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
