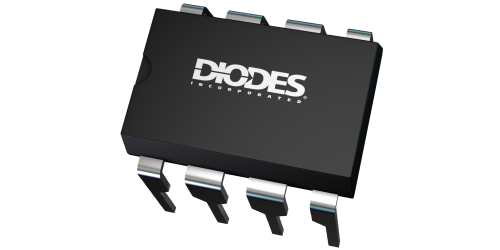

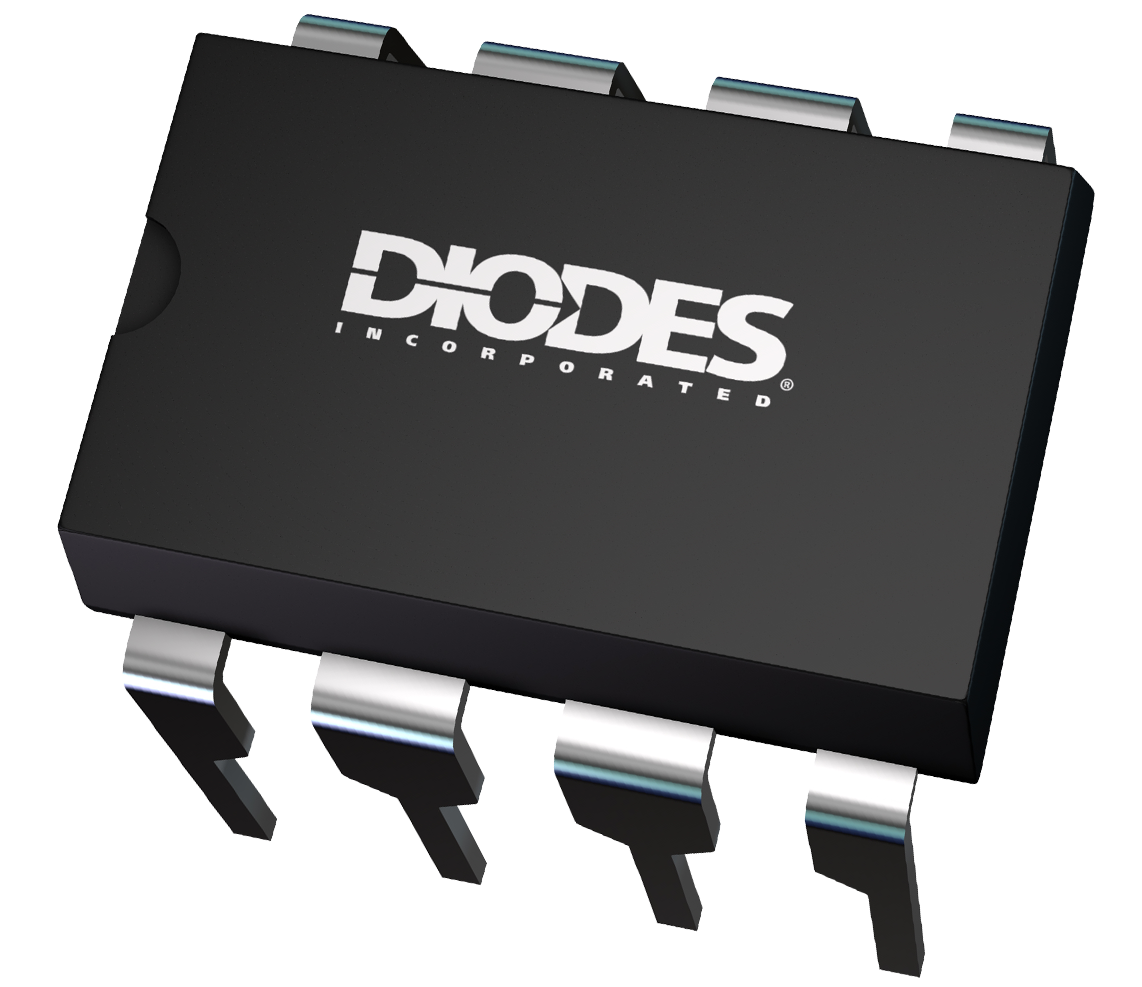

PDIP 8 Type A1

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Reversible DC Motor Drivers

ZXBM5409Q

BRUSHED DC MOTOR DRIVER WITH SERVO CONTROL

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The ZXBM5409Q is a protected H-Bridge Driver designed specifically for automotive manual headlight beam control and industrial servo control applications with DC-brush motor loads. The integrated full-bridge driver output stage is composed of high-current, low-RDSON H-bridge MOSFETs to maximize efficiency.

To simplify the circuit design and minimize external components, the device integrates voltage and temperature compensated internal references, amplifiers, and output H-bridge power switches with low RDSON.

For system flexibility, the servo control forward and reverse hysteresis, deadband, and angle amplification are easily programmable by external resistors.

To help protect the motor coil, the ZXBM5409Q provides fault condition protection, such as reference input short to GND, short-to-supply voltage, or broken wires, by stopping the motor and disconnecting the output stage. In case of supply undervoltage and overvoltage, the device shuts down the output drive to help prevent overvoltage stress on the coil. The overcurrent protection monitors the output current and shuts down the outputs stage with periodic retry to help protect the coil from device burnout. Overtemperature shutdown provides thermal protection for the device.

The ZXBM5409Q is available in industry standard PDIP-8 package and is qualified to AEC-Q100 Grade 1 and is automotive compliant supporting PPAPs.

Feature(s)

  • Servo DC Motor Drive
  • Wide Operating Voltage Range: 8V to 18V
  • Built-in H-Bridge with Low RDSON Resistance
  • Output Drive Current capability of 0.8A (Peak current of 1.6A)
  • Fault protection - Output Short to GND, supply or broken wires
    • Overvoltage and Undervoltage Shutdown
    • Overcurrent protection
    • Thermal Protection
  • Green Molding in DIP-8
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • Automotive Grade
  • Qualified to AEC-Q100 Standards for High Reliability
  • PPAP Capable

Application(s)

  • Automotive Headlight Position Servo Motor
  • 8V/ 12V / 18V Servo DC Motors

Product Specifications

Product Parameters

Compliance (Only Automotive(Q) supports PPAP) Automotive
Operating Voltage (V) 8 to 18 V
Supply Current(No Load) (mA) 3 mA
Average OutputDrive Current (mA) 500, 800 mA
Peak MotorCurrent (mA) 1800 mA
Typical Total RDS(ON)(NMOS and PMOS Combined) 1 @ 12V Ω
Speed Control N/A
Direction Control Yes
BrakeMode Yes
Standby Mode N/A
ProtectionFeatures Undervoltage Lockout, Overvoltage Protection, Overcurrent Protection, Thermal Shutdown
Temperature Range (°C) -40 to 125 °C
