ZXTN26070CV

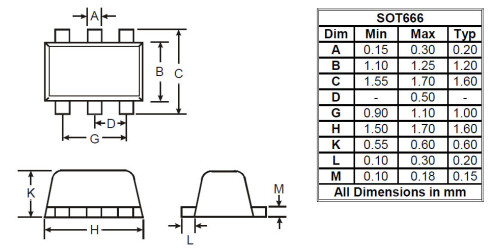

NPN, 70V, 2A, SOT666

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Application(s)

  • DC-DC converter
  • Product Specifications

    Product Parameters

    Category Low Saturation Transistor
    Compliance(Only Automotive supports PPAP) Standard
    Polarity NPN
    VCEO, VCES (V) 70
    IC (A) 2
    ICM (A) 5
    PD (W) 0.6
    hFE (Min) 190
    hFE (@ IC) (A) 0.01
    hFE(Min 2) 75
    hFE (@ IC2) (A) 2
    VCE(sat) Max (mV) 30
    VCE(SAT) (@ IC/IB) (A/mA) 0.1/10
    VCE(sat) (Max.2) (mV) 200
    VCE(sat) (@ IC/IB2) (A/mA) 1/50
    fT (MHz) 200
    RCE(sat) (mΩ) 130

    Related Content

    Packages

    Technical Documents

    SPICE Model

    Recommended Soldering Techniques

    TN1.pdf

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2305 2018-02-28 2018-05-28 Addition of A Passivation Layer Over The Top Metal of The Die for Selected BJT Devices
