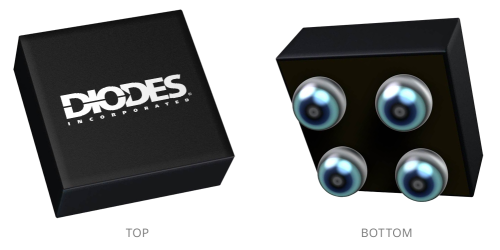

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

DMN1032UCB4 (Obsolete)

N-Channel Mosfet

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
CISS Typ (pF) 325
Compliance (Only Automotive(Q) supports PPAP) Standard
ESD Diodes (Y|N) No
|IDS| @TA = +25°C (A) 4.8
PD @TA = +25°C (W) 1.16
Polarity N
QG Typ @ |VGS| = 4.5V (nC) 3.2
AEC Qualified Yes
RDS(ON)Max@ VGS(1.8V)(mΩ) 38
RDS(ON)Max@ VGS(2.5V)(mΩ) 29
RDS(ON)Max@ VGS(4.5V)(mΩ) 26
|VDS| (V) 12
|VGS| (±V) 8
|VGS(TH)| Max (V) 1.2
|VGS(TH)| Min (V) 0.4

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2556 2021-11-22 2022-05-22 Device End of Life (EOL)
PCN-2507 2021-02-03 2021-05-03 Qualification of Additional Wafer Backside Material Supplier
