Diodes' DC-DC Converter Solutions Meet CISPR 25 EMI (Electromagnetic Interference) Standards

Electromagnetic interference (EMI) remains a significant design challenge, especially in automotive power converters. CISPR 25 is a stringent standard for radiated emissions in automotive applications. It defines limits for components and whole vehicles, using quasi-peak and average detectors across a wide frequency range. Measurements are conducted in the vicinity closer to the device under testing, compared to other standards, ensuring compatibility with various radio services. To ensure compliance with stringent regulations, designers must carefully consider the sources and types of EMI. The general test requirements are:

  • The device(s) under the test shall conform to either Peak or Quasi-peak limits as follows.
    • For the frequencies where both Peak and Quasi-peak limits are defined, the device(s) under the test shall conform to either the Peak or the Quasi-peak limits.
    • For the frequencies where only the Peak limits are defined, the device(s) under the test shall conform to the Peak limits.
  • In all cases, the device(s) under the test shall conform to the Average limits.


Figure 1
shows the limits of Class 5 (Peak, Quasi-peak, and Average) and Class 4 (Peak, Quasi-peak, and Average) at various frequency ranges. Table 1 shows the limits of disturbances at various frequency ranges and various classes from 5 to 1 in more detail.

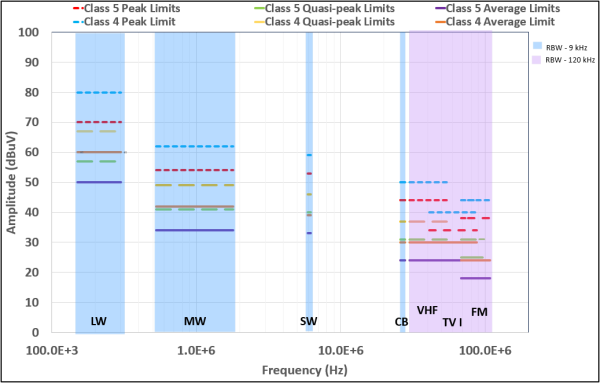

Figure 1: Graphical Limits of CISPR 25 Class 5 and Class 4

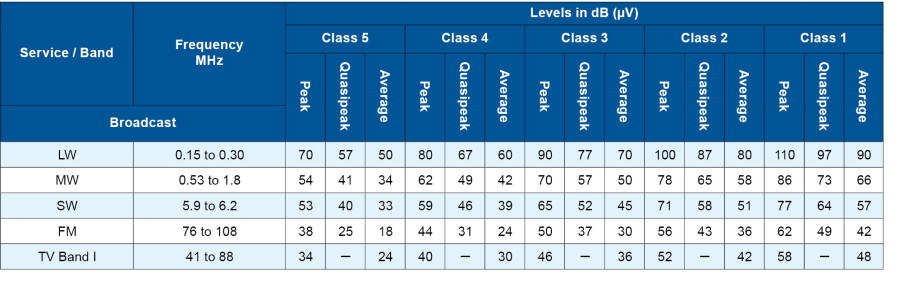

Table 1: Limits of CISPR 25 Disturbances


Diodes Incorporated (Diodes) offers innovative solutions that address stringent CISPR 25 Class 5
or 4 standards for automotive applications, and we have released hardware boards with DC-DC (listed in the table below) and Reverse Voltage protection using the AP74700Q.



Component

EVM Board

Input Voltage Range (V)

Output Voltage Range (V)

Current Rating (A)

Conducted EMC Compliance

Radiated EMC Compliance

AP66300Q

DDB103R3

3.8-60

0.8-40

3

Class 5

Class 5

AP64102Q

DDB108R2

3.8-40

0.8-Vin

1

Class 5

Class 5

AP64202Q

DDB108R2

3.8-40

0.8-Vin

2

Class 5

Class 5

AP64352Q

DDB108R2

3.8-40

0.8-Vin

3.5

Class 5

Class 5

AP64502Q

DDB108R2

3.8-40

0.8-Vin

5

Class 5

Class 5


Evaluation Boards for CISPR 25
:


Related Devices
:

  • AP61x0xQ: Automotive-Compliant, 2.4V To 5.5V input, 1A/2A/3A Low IQ Synchronous Buck
  • AP6335xQ: Automotive-Compliant, 3.8V To 32V input, 3.5A Low IQ Synchronous Buck
  • AP64060Q/AP64060TQ/AP64060ZQ: Automotive-Compliant, 3.8V TO 40V INPUT, 600mA Synchronous Buck with Enhanced EMI Reduction
  • AP64352Q: Automotive-Compliant, 3.8V To 40V input, 3.5A Low IQ Synchronous Buck With Programmable Frequency and Soft-Start
  • AP64350Q: Automotive-Compliant, 3.8V To 40V input, 3.5A Low IQ Synchronous Buck With Programmable Frequency
  • AP66200Q: 3.8V to 60V Input Automotive Grade, 2A Low IQ Synchronous Buck Converter
  • AP66300Q: 3.8V to 60V Input Automotive Grade, 3A Low IQ Synchronous Buck Converter
  • AP74700Q: Reverse Voltage Protected Ideal Diode controller
