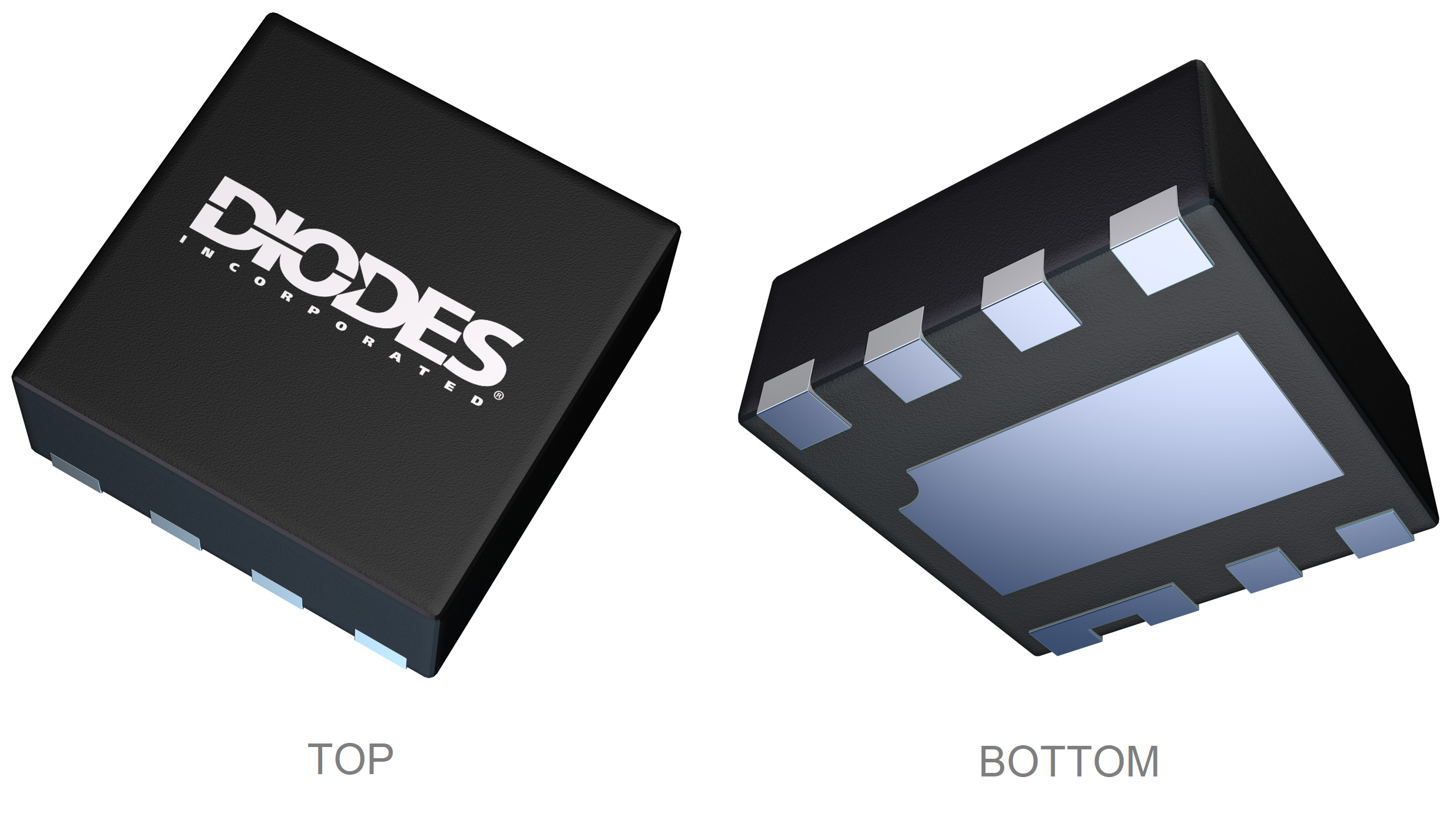

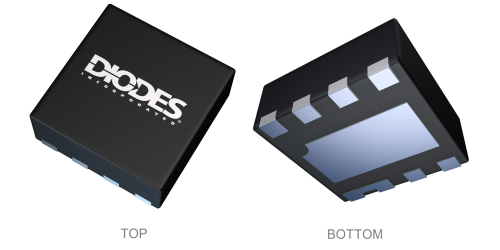

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
V-DFN2020-8-Type-N-Chip-Image.pngSingle-Channel Smart Load Switch
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
The DML3010ALFDS load switch provides a component and area-reducing solution for efficient power domain switching. In addition to integrated control functionality with ultra-low on-resistance, this device offers system safeguards and monitoring via fault protection and power-good signaling. This cost-effective solution is ideal for power-management and hot-swap applications requiring low power consumption in a small footprint.
| Type | Load Switch |
|---|---|
| AEC Qualified | No |
| Compliance (Only Automotive supports PPAP) | Standard |
| Maximum Continuous Output Current (A) | 10.5 |
| (MAX) Maximum Current Limit Fixed (A) | Not Limited |
| Adjustable Current Limit | No |
| Channels | 1 |
| Enable Logic | Active High |
| Minimum Operating Voltage (V) | 0.5 |
| Maximum Operating Voltage (V) | 20 |
| Quiescent Current Typ (µA) | 150 |
| RDS(ON) (VIN = 5V) Typ (mΩ) | 7.5 |
| Reverse Current Block | No |
| Minimum Power Supply Voltage (V) | 3 |
| Maximum Power Supply Voltage (V) | 5.5 |
| Output Discharge | Yes |
| (TYP) Output Rise Time mS | 0.1 |
| OCP Output Latch Off | No |
| OCP/SCP | SCP |
| OCP Flag | No |
| Power Good | open drain |
| Operating Ambient Temperature Range (°C) | -40 to 85 |
| Overtemperature Protection | Yes |
| UL Certificate | No |
