DMN2016UFX

DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Feature(s)

  • Low On-Resistance
  • Low Input Capacitance
  • Fast Switching Speed
  • Low Input/Output Leakage
  • ESD Protected

Application(s)

  • General Purpose Interfacing Switch
  • Power Management Functions

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+N
ESD Diodes (Y|N) Yes
|VDS| (V) 24 V
|VGS| (±V) 12 ±V
|IDS| @TA = +25°C (A) 9.9
PD @TA = +25°C (W) 2.23
RDS(ON)Max@ VGS(4.5V)(mΩ) 15 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 20 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.5 V
QG Typ @ |VGS| = 4.5V (nC) 14 nC
CISS Typ (pF) 950 pF
CISS Condition @|VDS| (V) 10 V

Related Content

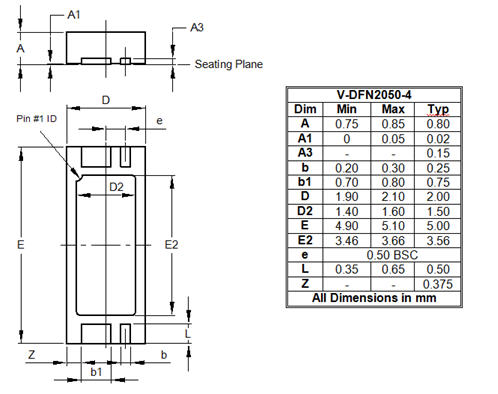

Packages
