PD3S220LQ

Datasheet

Contact Sales

Description

These Schottky Barrier Rectifiers have been designed to meet the stringent requirements of automotive applications. They are ideally suited to use as: polarity protection diodes, re-circulating diodes, and switching diodes.

Feature(s)

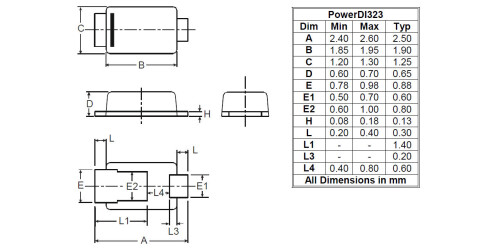

Ultra-Small Surface-Mount Package
Guard Ring Die Construction for Transient Protection
High Surge Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The PD3S220LQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

Polarity protection diodes
Re-circulating diodes
Switching diodes

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive supports PPAP)	Automotive
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	2 A
@ TerminalTemperature TT (ºC)	N/A ºC
Peak RepetitiveReverse VoltageV_RRM(V)	20 V
Peak ForwardSurge CurrentI_FSM(A)	33 A
Forward VoltageDrop V_F(V)	0.49 V
@ I_F(A)	2 A
Maximum ReverseCurrent I_R(µA)	160 µA
@ V_R(V)	20 V
TotalCapacitance C_T(pF)	200 pF

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2478	2020-08-13	2021-06-06	Additional Wafer Source (GFAB)
