AHE300: InSb Hall Element (Hall Elements)

Description

The AHE300 is an InSb (ultra-high sensitivity) Hall element with an output voltage of 370mV (max).

The AHE300 is a device that operates even in weak magnetic fields due to its ultra-high sensitivity.

Ultra-High Sensitivity
- It Works Even with a Fairly Weak Magnetic Field

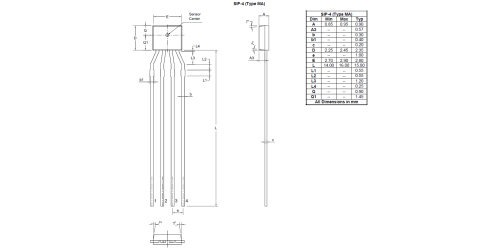

Classic SIP-4 (Type MA) Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Detection of opening and closing of mobile phones and PCs
Detection with joysticks
Magnetic encoders
Current measurement with overhead wire ammeters (clamp type ammeters)
Position detection with brushless motors, wheel rotation speed detection
Contactless commutation, speed measurement, and angular position sensing/indexing in consumer home appliances, office equipment, and industrial applications

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	No
Input Resistance Min. (Ω)	240 Ω
Input Resistance Max. (Ω)	550 Ω
Output Resistance Min. (Ω)	240 Ω
Output Resistance Max. (Ω)	550 Ω
Output Hall Voltage (@50mT 1V) Min. (mV)	168 mV
Output Hall Voltage (@50mT 1V) Max. (mV)	320 mV
Classification of Output Hall Voltage	C,D,E,F,G
Offset Voltage (@1V) Min. (mV)	-7 mV
Offset Voltage (@1V) Max. (mV)	7 mV
Operating Temperature Range (°C)	-40 to +110 °C
