APD245 (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Application(s)

  • Low Voltage High Frequency Inverters
  • DC-DC Converters
  • Free Wheeling
  • Polarity Protection

Product Specifications

Product Parameters

@ IF (A) 2
@ TerminalTemperature TT (ºC) N/A
@ VR (V) 45
Compliance (Only Automotive supports PPAP) No
Configuration Single
Forward VoltageDrop VF(V) 0.5
MaximumAverageRectifiedCurrent IO (A) 2
Maximum ReverseCurrent IR (µA) 500
Peak ForwardSurge CurrentIFSM(A) 50
Peak RepetitiveReverse VoltageVRRM (V) 45
AEC Qualified No
Reverse RecoveryTime trr (ns) N/A
TotalCapacitance CT (pF) 150

Related Content

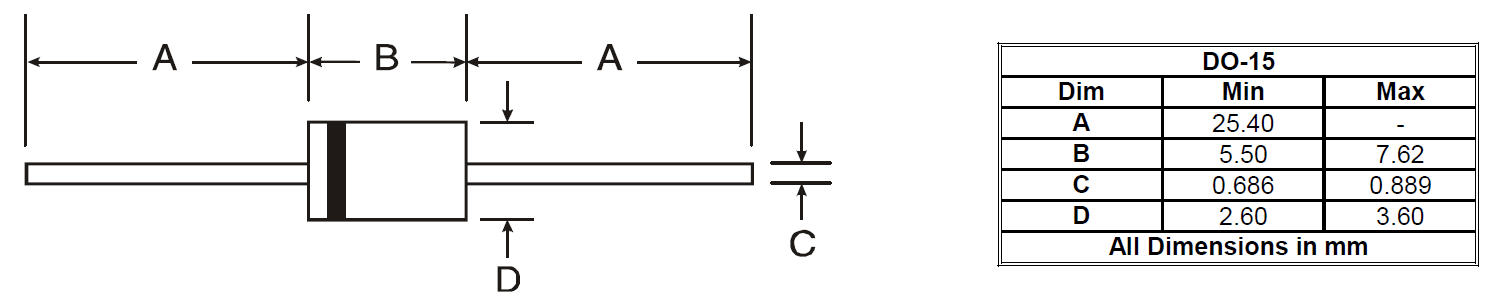

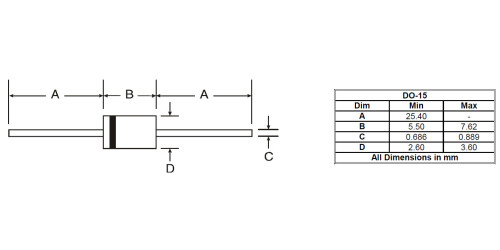

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf
