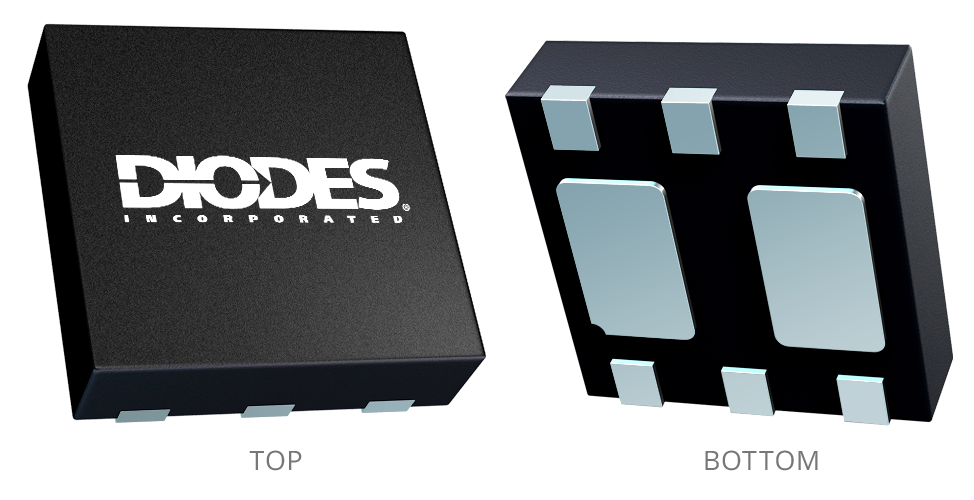

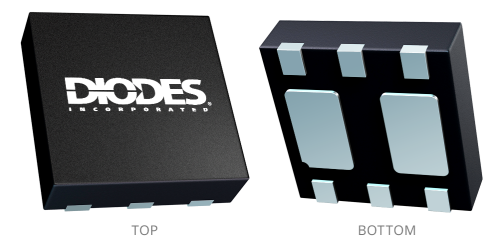

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
U-DFN2020-6-Type-F.pngCOMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
| AEC Qualified | No |
|---|---|
| Compliance (Only Automotive(Q) supports PPAP) | Standard |
| Polarity | N+P |
| ESD Diodes (Y|N) | No |
| |VDS| (V) | 12, 12 V |
| |VGS| (±V) | 8, 8 ±V |
| |IDS| @TA = +25°C (A) | 5.6, 3.8 |
| PD @TA = +25°C (W) | 1.4 |
| RDS(ON)Max@ VGS(4.5V)(mΩ) | 29, 61 mΩ |
| RDS(ON)Max@ VGS(2.5V)(mΩ) | 34, 81 mΩ |
| RDS(ON)Max@ VGS(1.8V)(mΩ) | 44, 115 mΩ |
| |VGS(TH)| Min (V) | 0.4, 0.4 V |
| |VGS(TH)| Max (V) | 1, 1 V |
| QG Typ @ |VGS| = 4.5V (nC) | 10.5, 10.7 nC |
| QG Typ @ |VGS| = 10V (nC) | 19.6, 17.9 (@8V) nC |
| CISS Typ (pF) | 914, 915 pF |
| CISS Condition @|VDS| (V) | 6, 6 V |
