DMHT6016LFJ

60V N-CHANNEL ENHANCEMENT MODE MOSFET H-BRIDGE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation complementary MOSFET H-Bridge features low on-resistance achievable with low gate drive.

Feature(s)

  • Thermally Efficient Package – Cooler Running Applications
  • High Conversion Efficiency
  • Low RDS(ON) – Minimizes On-State Losses
  • Low Input Capacitance
  • Fast Switching Speed

Application(s)

  • Motor Control
  • DC-DC Converters
  • Power Management

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity 4N
ESD Diodes (Y|N) No
|VDS| (V) 60 V
|VGS| (±V) 20 ±V
|IDS| @TA = +25°C (A) 10.6
PD @TA = +25°C (W) 2.7
RDS(ON)Max@ VGS(10V)(mΩ) 22 mΩ
RDS(ON)Max@ VGS(4.5V)(mΩ) 30 mΩ
|VGS(TH)| Max (V) 3 V
QG Typ @ |VGS| = 4.5V (nC) 8.4 nC
QG Typ @ |VGS| = 10V (nC) 17 nC
CISS Typ (pF) 864 pF
CISS Condition @|VDS| (V) 30 V

Related Content

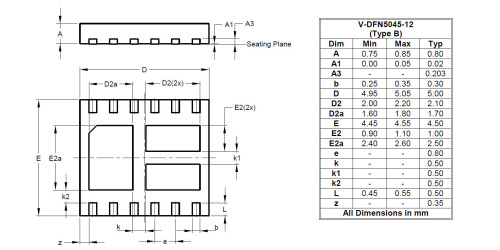

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2495 2021-03-31 2021-07-01 Qualification of Additional Assembly & Test Sites and Additional Wafer Back Grinding and Back Metal Process
