DMJ70H600SH3 (NRND)

NRND = Not Recommended for New Design

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET features low on-resistance and fast switching, making it ideal for high efficiency power management applications.

Feature(s)

  • Low Input Capacitance
  • High BVDSS Rating for Power Application
  • Low Input/Output Leakage
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Motor Control
  • Backlighting
  • DC-DC Converters
  • Power Management Functions

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
CISS Condition @|VDS| (V) 25
CISS Typ (pF) 643
Compliance (Only Automotive(Q) supports PPAP) Standard
ESD Diodes (Y|N) No
|IDS| @TC = +25°C (A) 11
PD @TA = +25°C (W) 2.19
PD @TC = +25°C (W) 113
Polarity N
QG Typ @ |VGS| = 10V (nC) 18.2
AEC Qualified No
RDS(ON)Max@ VGS(10V)(mΩ) 600
|VDS| (V) 700
|VGS| (±V) 30
|VGS(TH)| Max (V) 4

Related Content

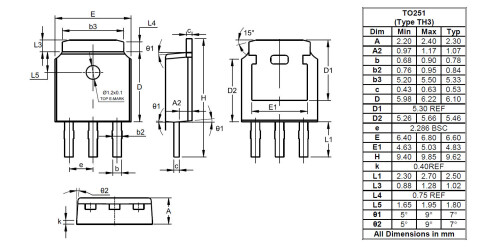

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2593 2022-11-02 2023-05-02 Device End of Life (EOL)
