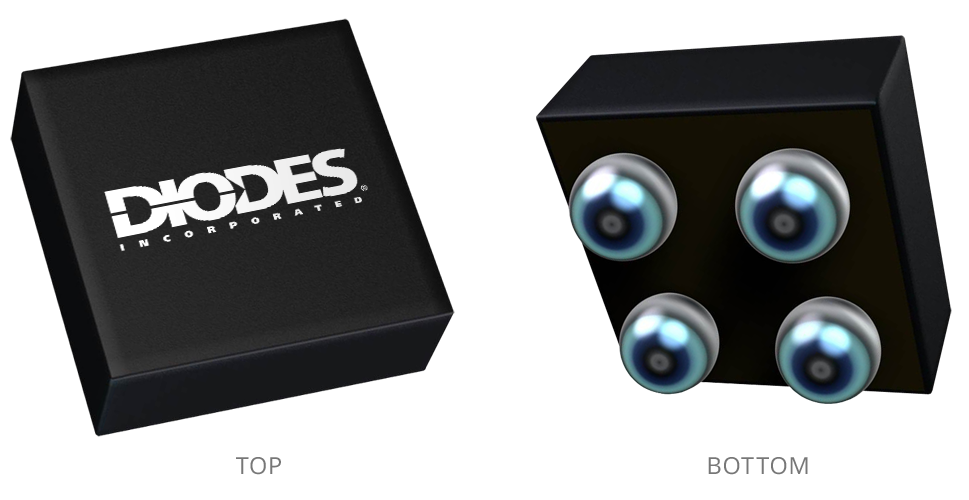

DMN1023UCB4 (Obsolete)

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

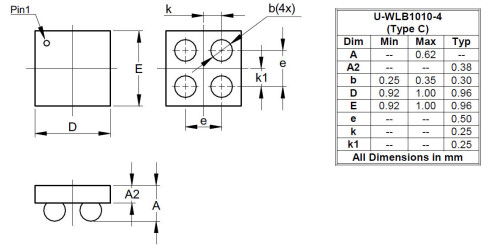

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
CISS Typ (pF) 288
Compliance (Only Automotive(Q) supports PPAP) Standard
ESD Diodes (Y|N) No
|IDS| @TA = +25°C (A) 5.1
PD @TA = +25°C (W) 1.2
Polarity N
QG Typ @ |VGS| = 4.5V (nC) 2.3
AEC Qualified No
RDS(ON)Max@ VGS(1.8V)(mΩ) 42
RDS(ON)Max@ VGS(2.5V)(mΩ) 29
RDS(ON)Max@ VGS(4.5V)(mΩ) 23
|VDS| (V) 12
|VGS| (±V) 8
|VGS(TH)| Max (V) 1.2
|VGS(TH)| Min (V) 0.4

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2556 2021-11-22 2022-05-22 Device End of Life (EOL)
