DMN1053UCP4

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power transfer. Using Chip-Scale Package (CSP) to increase power density by combining low thermal impedance with minimal RDS(ON) per footprint area.

Feature(s)

  • TR-MOS Technology with the Lowest RDS(ON)

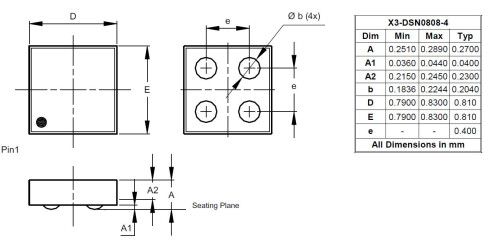

  • CSP with Footprint 0.81mm × 0.81mm (Typ.)
  • Height = 0.29mm for Low Profile
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • DC-DC Converters
  • Battery Management
  • Load Switch

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N
ESD Diodes (Y|N) No
|VDS| (V) 12 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 4
PD @TA = +25°C (W) 1.34
RDS(ON)Max@ VGS(4.5V)(mΩ) 42 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 50 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 65 mΩ
|VGS(TH)| Max (V) 0.7 V
QG Typ @ |VGS| = 4.5V (nC) 7.2 nC
CISS Typ (pF) 612 pF

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf
