DMN11M1UCA14

N-Channel Enhancement Mode MOSFET

Datasheet

Contact Sales

Description

This new generation MOSFET is designed to minimize the on-state resistance R_SS(ON)yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Feature(s)

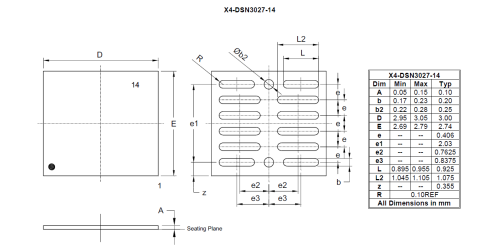

CSP with Footprint 3.00mm ×2.74mm
Height = 0.1mm (typical) for Low Profile
ESD Protection of Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

Battery managements
Load switches
Battery protections

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	N
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	12 V
\|V_GS\| (±V)	8 ±V
\|I_DS\| @T_A = +25°C (A)	33.3
P_D @T_A = +25°C (W)	2
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	1.85 mΩ
R_DS(ON)Max@ V_GS(2.5V)(mΩ)	3.4 mΩ
\|V_GS(TH)\| Min (V)	0.35 V
\|V_GS(TH)\| Max (V)	1.4 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	77.7 nC
C_ISS Typ (pF)	3308 pF
C_ISS Condition @\|V_DS\| (V)	6 V

Technical Documents

SPICE Model

DMN11M1UCA14.spice.txt

Recommended Soldering Techniques

TN1.pdf
