DMN11M2UCA14 (NRND)

NRND = Not Recommended for New Design

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

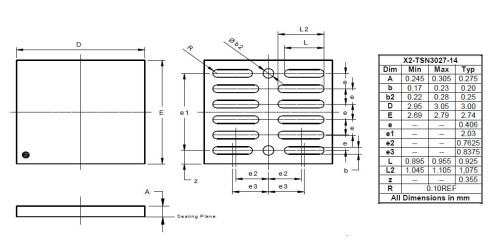

  • CSP with Footprint 3.00mm ×2.74mm
  • Height = 0.275mm (Typical) for Low Profile
  • ESD Protection of Gate
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control
    (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
    manufactured in IATF 16949 certified facilities), please
    contact us or your local Diodes representative.
    https://www.diodes.com/quality/product-definitions/

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
CISS Condition @|VDS| (V) 6
CISS Typ (pF) 6083
Compliance (Only Automotive(Q) supports PPAP) Standard
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 34
PD @TA = +25°C (W) 3.3
Polarity N+N
QG Typ @ |VGS| = 4.5V (nC) 71
AEC Qualified No
RDS(ON)Max@ VGS(2.5V)(mΩ) 3.4
RDS(ON)Max@ VGS(4.5V)(mΩ) 1.85
|VDS| (V) 12
|VGS| (±V) 8
|VGS(TH)| Max (V) 1.4
|VGS(TH)| Min (V) 0.35
