DMN16M0UCA6

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Feature(s)

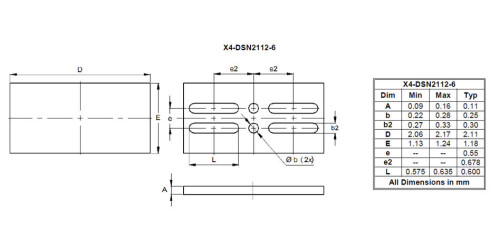

  • CSP with Footprint 2.11mm × 1.18mm
  • Height = 0.11mm for Low Profile
  • ESD Protection of Gate

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+N
ESD Diodes (Y|N) Yes
|VDS| (V) 12 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 17
PD @TA = +25°C (W) 2.6
RDS(ON)Max@ VGS(4.5V)(mΩ) 5.9 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 11 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.3 V
QG Typ @ |VGS| = 4.5V (nC) 24 nC
