DMN2010UDZ (Obsolete)

DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • Low On-Resistance
  • Low Gate Threshold Voltage
  • Low Input Capacitance
  • Fast Switching Speed

Application(s)

  • Power Management Functions
  • Battery Pack
  • Load Switch
  • Smartphones
  • Chargers

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
CISS Condition @|VDS| (V) 24
CISS Typ (pF) 2655
Compliance (Only Automotive(Q) supports PPAP) Standard
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 11
PD @TA = +25°C (W) 1.6
Polarity N+N
QG Typ @ |VGS| = 4.5V (nC) 33.2
AEC Qualified No
RDS(ON)Max@ VGS(2.5V)(mΩ) 10.5
RDS(ON)Max@ VGS(4.5V)(mΩ) 7
|VDS| (V) 24
|VGS| (±V) 8
|VGS(TH)| Max (V) 1.5

Related Content

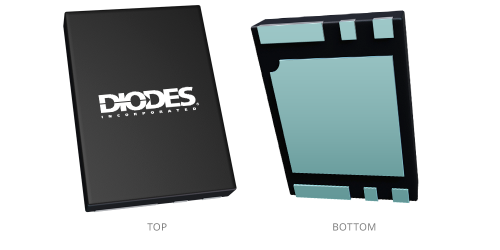

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2502 2021-03-15 2021-09-15 Device End of Life (EOL)
