DMN2022UNS

DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • Low On-Resistance
  • Low Input Capacitance
  • Fast Switching Speed
  • Low Input/Output Leakage
  • Complementary Pair MOSFET
  • ESD Protected Up to 2kV
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Battery Charge Protection
  • Loadswitch

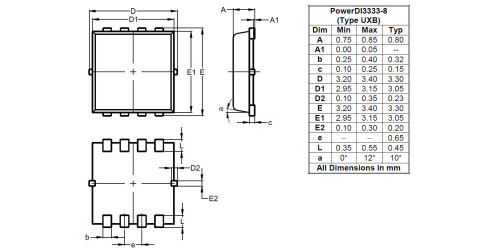

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+N
ESD Diodes (Y|N) Yes
|VDS| (V) 20 V
|VGS| (±V) 10 ±V
|IDS| @TA = +25°C (A) 10.7
PD @TA = +25°C (W) 1.9
RDS(ON)Max@ VGS(4.5V)(mΩ) 10.8 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 14.5 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 17 mΩ
|VGS(TH)| Max (V) 1 V
QG Typ @ |VGS| = 4.5V (nC) 20.3 nC
CISS Typ (pF) 1870 pF
