DMN2028UFDH

N-Channel Mosfet

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

  • Power management functions
  • Load Switch
  • Product Specifications

    Product Parameters

    AEC Qualified Yes
    Compliance (Only Automotive(Q) supports PPAP) Standard
    Polarity N+N
    ESD Diodes (Y|N) Yes
    |VDS| (V) 20 V
    |VGS| (±V) 12 ±V
    |IDS| @TA = +25°C (A) 6.8
    PD @TA = +25°C (W) 1.5
    RDS(ON)Max@ VGS(10V)(mΩ) 20 mΩ
    RDS(ON)Max@ VGS(4.5V)(mΩ) 22 mΩ
    RDS(ON)Max@ VGS(2.5V)(mΩ) 26 mΩ
    RDS(ON)Max@ VGS(1.8V)(mΩ) 36 mΩ
    |VGS(TH)| Min (V) 0.5 V
    |VGS(TH)| Max (V) 1 V
    QG Typ @ |VGS| = 4.5V (nC) 8.5 nC
    CISS Typ (pF) 151 pF

    Related Content

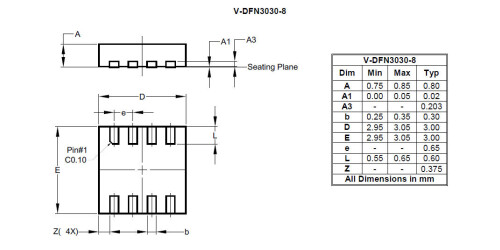

    Packages

    Technical Documents

    SPICE Model

    Recommended Soldering Techniques

    TN1.pdf

    RoHS CofC

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2495 2021-03-31 2021-07-01 Qualification of Additional Assembly & Test Sites and Additional Wafer Back Grinding and Back Metal Process
    Source for Select Discrete Products
    PCN-2425 2019-10-04 2020-01-04 Qualification of Additional Wafer Solderable Front Metal Plating, Back Grinding and Back Metal Process Source, and
    Additional Wafer Source for Select Products.
