DMN2036UCB4

N-CHANNEL ENHANCEMENT MODE FIELD MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) and making it ideal for high efficiency power management.

Feature(s)

  • Built-in G-S Protection Diode against ESD 2kV HBM
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

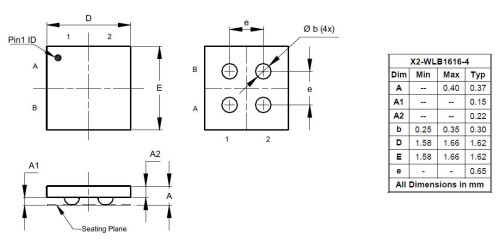

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N+N
ESD Diodes (Y|N) Yes
|VDS| (V) 24 V
|VGS| (±V) 12 ±V
|IDS| @TA = +25°C (A) 5
PD @TA = +25°C (W) 1.45
RDS(ON)Max@ VGS(4.5V)(mΩ) 36 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 52 mΩ
|VGS(TH)| Min (V) 0.5 V
|VGS(TH)| Max (V) 1.3 V
QG Typ @ |VGS| = 4.5V (nC) 12.6 nC
