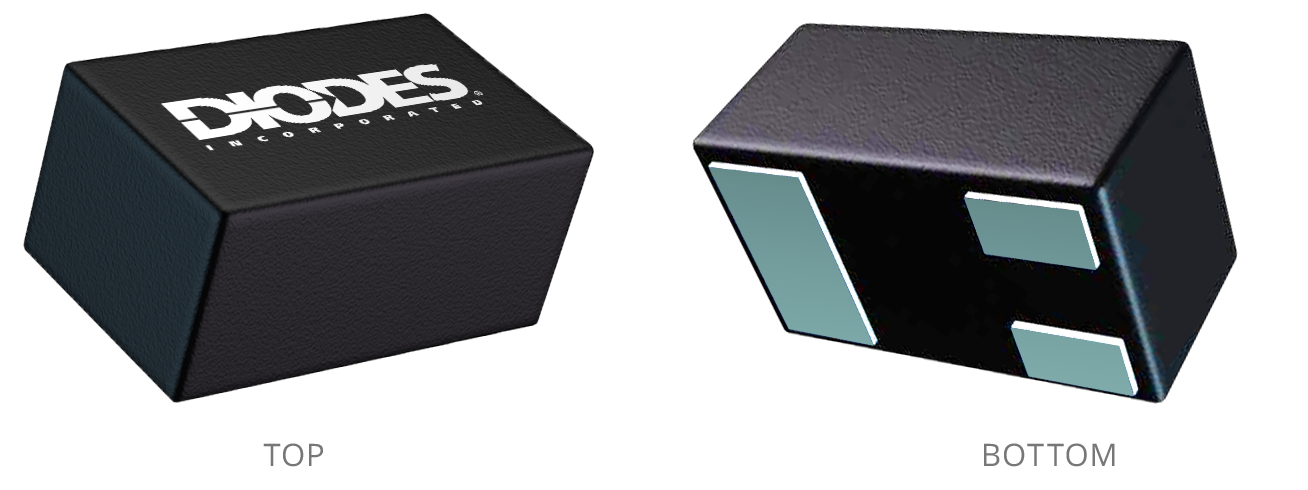

X2 DFN1006 3

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

DMN2400UFB4 (NRND)

NRND = Not Recommended for New Design

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) On Request
CISS Condition @|VDS| (V) N/A
CISS Typ (pF) 38
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 0.75
PD @TA = +25°C (W) 0.47
Polarity N
QG Typ @ |VGS| = 10V (nC) N/A
QG Typ @ |VGS| = 4.5V (nC) 0.5
AEC Qualified Yes
RDS(ON)Max@ VGS(1.8V)(mΩ) 900
RDS(ON)Max@ VGS(10V)(mΩ) N/A
RDS(ON)Max@ VGS(2.5V)(mΩ) N/A
RDS(ON)Max@ VGS(4.5V)(mΩ) N/A
|VDS| (V) 20
|VGS| (±V) N/A
|VGS(TH)| Max (V) 0.9
|VGS(TH)| Min (V) 0.5

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2389 2019-02-05 2019-08-05 Device End of Life
PCN-2340 2018-04-26 2018-05-26 Qualification of Alternate Wafer Sources for Select MOSFET Products
PCN-2299 2018-03-01 2018-06-01 Additional Qualified (A/T) Assembly Test Site
