DMN6070SFCL

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

  • Power Management Functions
  • Analog Switch

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N
ESD Diodes (Y|N) No
|VDS| (V) 60 V
|VGS| (±V) 20 ±V
|IDS| @TA = +25°C (A) 3
PD @TA = +25°C (W) 1.8
RDS(ON)Max@ VGS(10V)(mΩ) 85 mΩ
RDS(ON)Max@ VGS(4.5V)(mΩ) 120 mΩ
|VGS(TH)| Max (V) 3 V
QG Typ @ |VGS| = 4.5V (nC) 5.6 nC
QG Typ @ |VGS| = 10V (nC) 12.3 nC
CISS Typ (pF) 606 @ 20V pF

Related Content

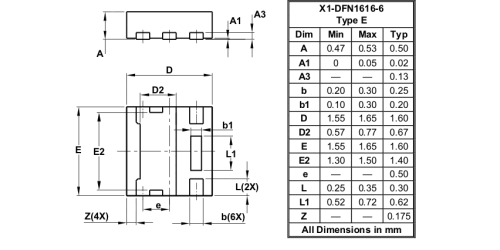

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2402 2019-05-15 2019-08-15 Qualification of "Diodes Technology (Cheng Du) Company Limited" (CAT) as an Additional Assembly & Test Site and Conversion to Palladium Coated Copper Bond Wire with New Lead Frame Type on Select Products
