DMP1045UCB4

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. It is a high performance MOSFET in ultra-small 0.8mm x 0.8mm package.

Application(s)

  • Portable Applications
  • Load Switch
  • Power Management Functions

Feature(s)

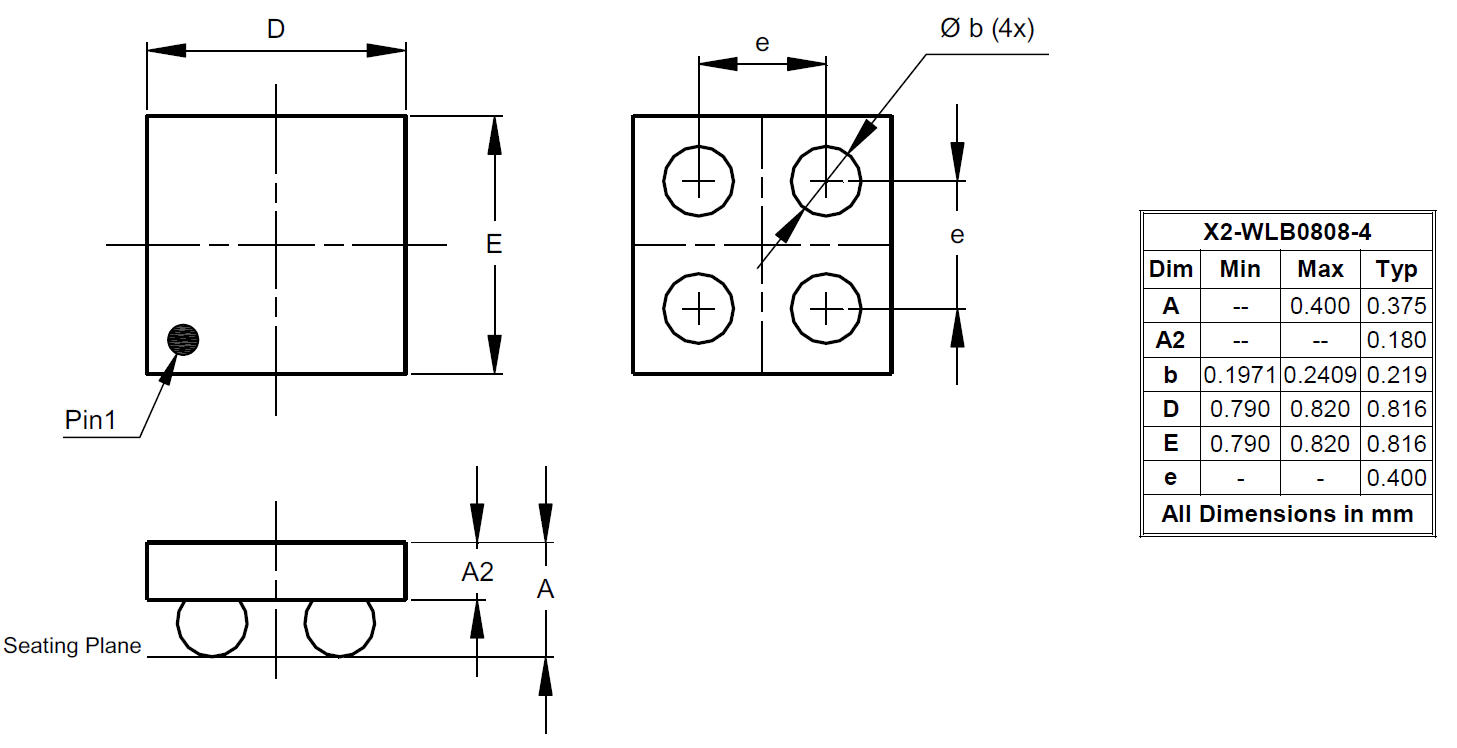

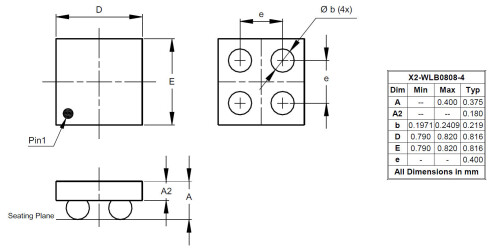

  • Ultra Small 0.8mm x 0.8mm Package
  • Built-in G-S Protection Diode Against ESD
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 12 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 4.8
PD @TA = +25°C (W) 1.75
RDS(ON)Max@ VGS(4.5V)(mΩ) 50 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 65 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 100 mΩ
|VGS(TH)| Min (V) 0.3 V
|VGS(TH)| Max (V) 1 V
QG Typ @ |VGS| = 4.5V (nC) 6.1 nC
CISS Typ (pF) 535 pF
CISS Condition @|VDS| (V) 6 V
