DMP1070UCA3

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.

Feature(s)

  • Low Qg & Qgd
  • Small Footprint
  • Low Profile 0.22mm Height

Application(s)

  • Battery Management
  • Load Switch
  • Battery Protection

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 12 V
|VGS| (±V) 6 ±V
|IDS| @TA = +25°C (A) 3.6
PD @TA = +25°C (W) 1.36
RDS(ON)Max@ VGS(4.5V)(mΩ) 70 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 100 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 150 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 0.95 V
QG Typ @ |VGS| = 4.5V (nC) 1.45 nC
CISS Typ (pF) 147 pF
CISS Condition @|VDS| (V) 6 V

Related Content

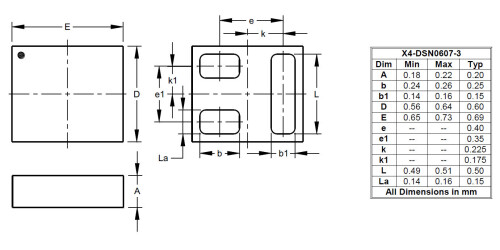

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2623 2023-05-15 2023-11-15 Device End of Life (EOL)
