DMP2200UFCL

Dual P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

  • Typical off board profile of 0.5mm - ideally suited for thin applications
  • Low RDS(ON) – minimizes conduction losses
  • PCB footprint of 2.56mm2
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • Qualified to AEC-Q101 standards for High Reliability
  • ESD Protected Gate

Application(s)

  • Battery disconnect switch
  • Load switch for power management functions

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P+P
ESD Diodes (Y|N) Yes
|VDS| (V) 20 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 1.7
PD @TA = +25°C (W) 1.58
RDS(ON)Max@ VGS(4.5V)(mΩ) 200 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 290 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 390 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1.2 V
QG Typ @ |VGS| = 4.5V (nC) 2.2 nC
CISS Typ (pF) 184 pF
CISS Condition @|VDS| (V) 10 V

Related Content

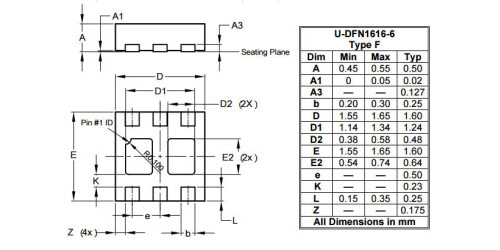

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2402 2019-05-15 2019-08-15 Qualification of "Diodes Technology (Cheng Du) Company Limited" (CAT) as an Additional Assembly & Test Site and Conversion to Palladium Coated Copper Bond Wire with New Lead Frame Type on Select Products
