DMP22D4UDA

20V P-CHANNEL ENHANCEMENT MODE MOSFET

Datasheet

Contact Sales

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

Low On-Resistance
Very Low Gate Threshold Voltage, -1.0V max
Low Input Capacitance
Fast Switching Speed

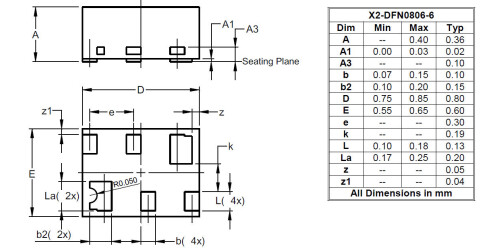

Ultra-Small Surface Mount Package 0.8mm x 0.6mm

Application(s)

General Purpose Interfacing Switch
Power Management Functions
Analog Switch

Product Specifications

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	P+P
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	20 V
\|V_GS\| (±V)	8 ±V
\|I_DS\| @T_A = +25°C (A)	0.33
P_D @T_A = +25°C (W)	0.31
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	1900 mΩ
R_DS(ON)Max@ V_GS(2.5V)(mΩ)	2400 mΩ
R_DS(ON)Max@ V_GS(1.8V)(mΩ)	3400 mΩ
\|V_GS(TH)\| Min (V)	0.4 V
\|V_GS(TH)\| Max (V)	1 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	0.4 nC
C_ISS Typ (pF)	28.5 pF
C_ISS Condition @\|V_DS\| (V)	15 V

Technical Documents

SPICE Model

DMP22D4UDA.spice.txt

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2498	2021-04-07	2021-04-07	Qualification of Additional Wafer Source, and Additional Assembly and Test (A/T) Site for Select Discrete Products
