DMP2541UCB9 (Obsolete)

25V P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

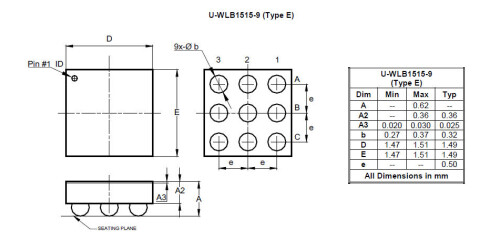

Specifications & Technical Documents

Product Parameters

CISS Condition @|VDS| (V) 10
CISS Typ (pF) 566
Compliance (Only Automotive Supports PPAP) Standard
Compliance (Only Automotive Supports PPAP) Standard
ESD Diodes (Y|N) Yes
|IDS| @TA = +25°C (A) 5.4
PD @TA = +25°C (W) 1.78
Polarity P
QG Typ @ |VGS| = 4.5V (nC) 4.7
AEC Qualified No
RDS(ON)Max@ VGS(1.8V)(mΩ) 60
RDS(ON)Max@ VGS(2.5V)(mΩ) 50
RDS(ON)Max@ VGS(4.5V)(mΩ) 40
|VDS| (V) 25
|VGS| (±V) 6
|VGS(TH)| Max (V) 1.1
|VGS(TH)| Min (V) 0.4

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Purchase & Availablity

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2556 2021-11-22 2022-05-22 Device End of Life (EOL)
