DMP3017SFK

P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

  • Load Switch
  • Power Management Functions
  • DC-DC Converters

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity P
ESD Diodes (Y|N) Yes
|VDS| (V) 30 V
|VGS| (±V) 25 ±V
|IDS| @TA = +25°C (A) 10.4
PD @TA = +25°C (W) 2.2
RDS(ON)Max@ VGS(10V)(mΩ) 14 mΩ
RDS(ON)Max@ VGS(4.5V)(mΩ) 25 mΩ
|VGS(TH)| Max (V) 2.5 V
QG Typ @ |VGS| = 4.5V (nC) 21.6 nC
QG Typ @ |VGS| = 10V (nC) 42.7 nC
CISS Typ (pF) 2207 pF

Related Content

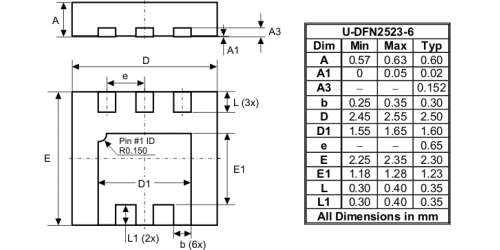

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2318 2018-01-22 2018-01-22 Device End of Life (EOL)
