DMTH4007SPDW: 40V +175°C Dual N-Channel Enhancement Mode MOSFET (MOSFET Master Table)

Description

This MOSFET is designed to minimize the on-state resistance (R_DS(ON)) yet maintain superior switching performance, marking it ideal for high-efficiency power-management applications.

Feature(s)

Rated to +175°C – Ideal for High Ambient Temperature Environments
High Conversion Efficiency
Low R_DS(ON)– Minimizes On-State Losses
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/
An automotive-compliant part is available under separate datasheet (DMTH4007SPDWQ)

Application(s)

Backlighting
Power-management functions
DC-DC converters

Specifications & Technical Documents

Product Parameters

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	N+N
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	40 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_A = +25°C (A)	14.2
\|I_DS\| @T_C = +25°C (A)	45
P_D @T_A = +25°C (W)	2.6
P_D @T_C = +25°C (W)	37.5
R_DS(ON)Max@ V_GS(10V)(mΩ)	8.6 mΩ
\|V_GS(TH)\| Min (V)	2 V
\|V_GS(TH)\| Max (V)	4 V
Q_G Typ @ \|V_GS\| = 10V (nC)	41.9 nC
C_ISS Typ (pF)	2026 pF
C_ISS Condition @\|V_DS\| (V)	30 V

Technical Documents

SPICE Model

DMTH4007SPDW.spice.txt

Recommended Soldering Techniques

TN1.pdf

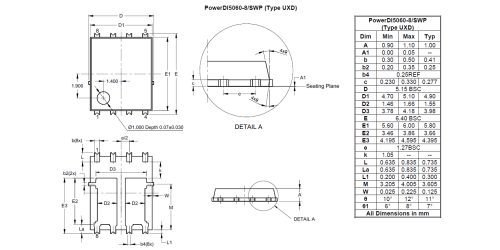

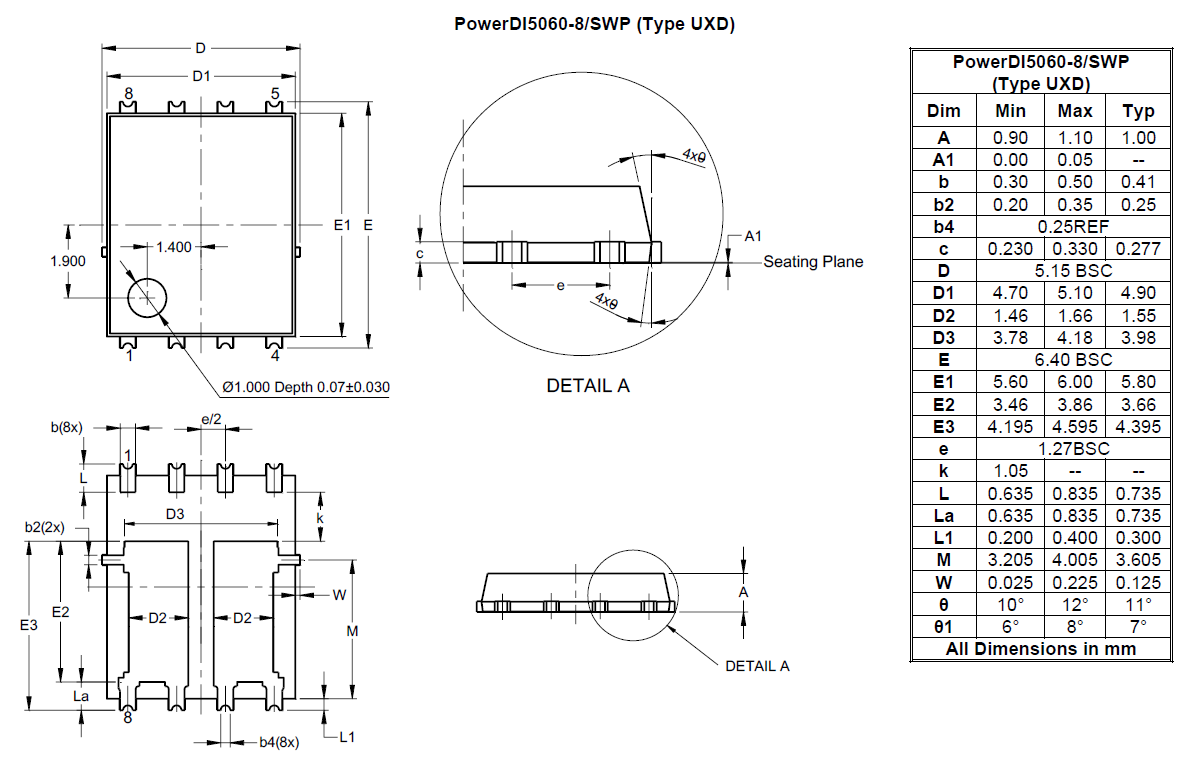

DMTH4007SPDW
