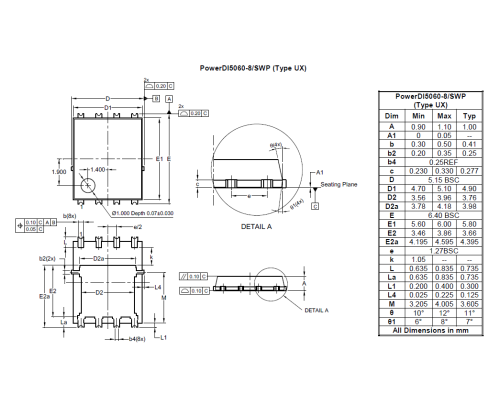

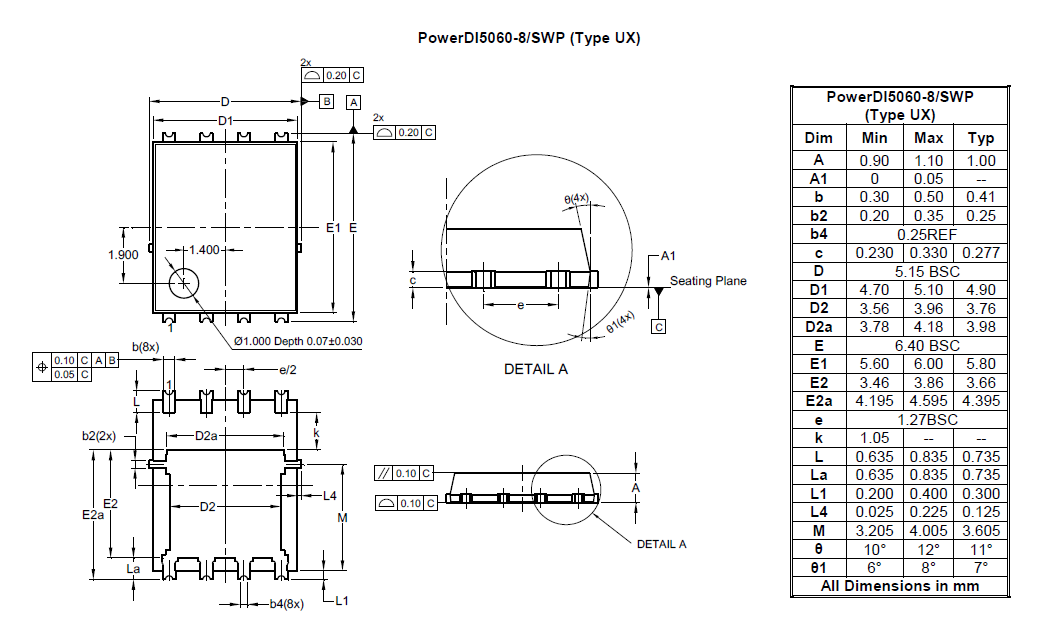

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.



Back to MOSFET Master Table

DMTH8008SPS

80V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Datasheet

Contact Sales

Description

This new generation MOSFET is designed to minimize RDS(ON) yet maintain superior switching performance. This device is ideal for use in power management and load switch.

Feature(s)

Rated to +175°C — Ideal for High Ambient Temperature Environments
100% Unclamped Inductive Switching (UIS) Test in Production — Ensures More Reliable and Robust End Application
High Conversion Efficiency
Low RDS(ON) — Minimizes On State Losses

Application(s)

DC-DC Converters
Load Switch

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive(Q) supports PPAP)	Standard
Polarity	N
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	80 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_C = +25°C (A)	92
P_D @T_A = +25°C (W)	3.4
P_D @T_C = +25°C (W)	100
R_DS(ON)Max@ V_GS(10V)(mΩ)	7.8 mΩ
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	11 (@6V) mΩ
\|V_GS(TH)\| Max (V)	4 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	23 (@6V) nC
Q_G Typ @ \|V_GS\| = 10V (nC)	34 nC
C_ISS Typ (pF)	1950 pF
C_ISS Condition @\|V_DS\| (V)	40 V

Technical Documents

SPICE Model

DMTH8008SPS .spice.txt

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

RoHSFile

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2439	2019-12-05	2020-03-05	Qualification of "Diodes Technology (Cheng Du) Company Limited" (CAT) as an Additional Assembly & Test Site, Using Gold Bond Wire, and as an Additional Wafer Back Grinding and Back Metal Process Source on Select MOSFET Products
