Silicon Carbide Schottky Diode
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

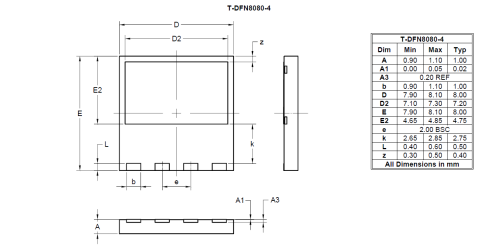

Packaged in the robust industry-standard DFN8080 package, the DSC06A065LP provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode in: power factor correction, industrial motor drivers, power inverters, SMPS, and UPS.
| AEC Qualified | Yes |
|---|---|
| Compliance (Only Automotive Supports PPAP) | Standard |
| Product Type | SiC Diodes |
| Configuration | Single |
| Maximum Average Rectified Current IO (A) | 6 |
| Maximum Peak Forward Surge Current IFSM (A) | 38 |
| Peak Repetitive Reverse Voltage VRRM (V) | 650 |
| Forward VoltageDrop VF(V) | 1.5 |
| @ IF (A) | 6 |
| Maximum Reverse Current IR (μA) | 20 |
| @ VR (V) | 650 |
| Total Capacitive Charge (nC) | 8 Qc |
| Total Capacitance CT (pF) | 295 |
